CD0805-B0230

ProducentBournsEURoHSYes (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
CD0805-B0230_BOURNS
0,00 zł

Zapytaj o ten produkt

Opis / CD0805-B0230

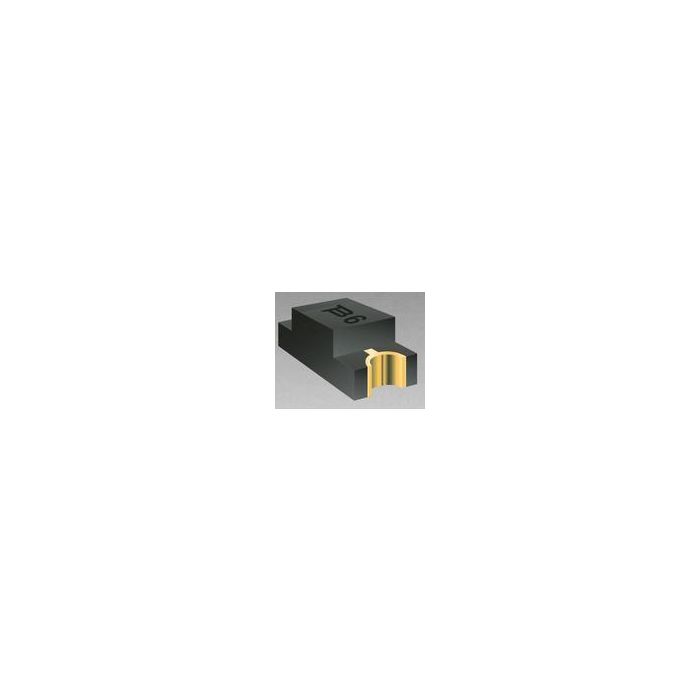

Diode Small Signal Schottky 35V 0.2A 2-Pin Case 0805(2012Metric)

Informacje podstawowe

  • ProducentBourns
  • EURoHSYes (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 5
  • PCNs 10
  • MaskPart CD0805B0230%
  • IntroductionDate Oct 20, 2003

Parametry

  • Configuration Single
  • Maximum Continuous Forward Current (A) 0.2
  • Maximum DC Reverse Voltage (V) 30
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) 200
  • Minimum Operating Temperature (°C) -40
  • Operating Junction Temperature (°C) -40 to 125
  • Peak Forward Voltage (V) 0.5
  • Peak Non-Repetitive Surge Current (A) 3
  • Peak Reverse Current (uA) 30
  • Peak Reverse Recovery Time (ns) N/A
  • Peak Reverse Repetitive Voltage (V) 35
  • Supplier Temperature Grade N/A
  • Type Small Signal Schottky Diode

Więcej informacji

Do pobrania Download
Main description Diode Small Signal Schottky 35V 0.2A 2-Pin Case 0805(2012Metric)
