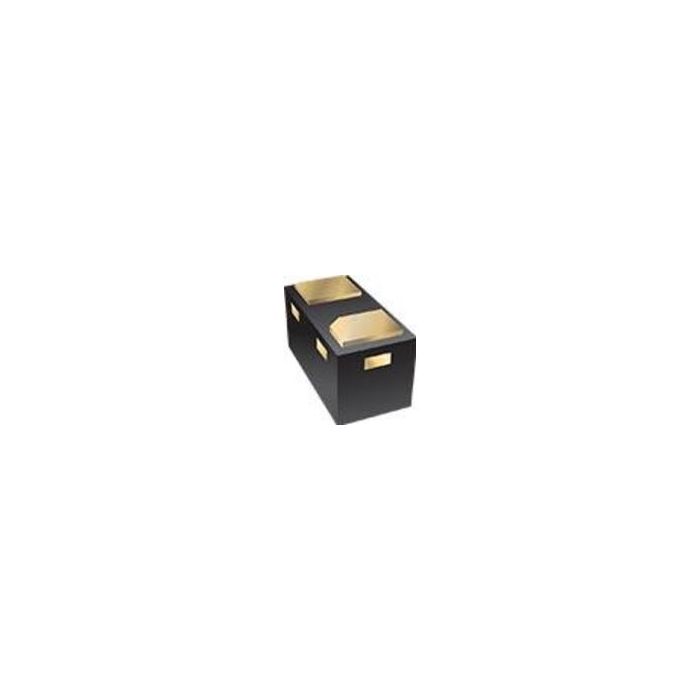

CD0201-T20C

ProducentBournsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
CD0201-T20C_BOURNS
0,00 zł

Zapytaj o ten produkt

Opis / CD0201-T20C

ESD Suppressor TVS Bi-Dir 20V 2-Pin Case 0201 T/R

Informacje podstawowe

  • ProducentBourns
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 36
  • Inventory 5
  • PCNs 11
  • GIDEP-Alerts 1
  • MaskPart CD0201T20C%

Parametry

  • Capacitance Value (pF) N/A
  • Configuration Single
  • Direction Type Bi-Directional
  • Maximum Breakdown Voltage (V) 27.3
  • Maximum Clamping Voltage (V) 34
  • Maximum Leakage Current (uA) 0.1
  • Maximum Operating Temperature (°C) 85
  • Maximum Peak Pulse Current (A) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Response Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Working Voltage (V) 20
  • Minimum Breakdown Voltage (V) 22.8
  • Minimum ESD Pulse Withstand (Pulses) N/A
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Nominal Zener Voltage (V) N/R
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) N/A
  • Peak Pulse Power Dissipation (W) N/A
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1
  • Tradename N/A
  • Type TVS
  • Typical Trigger Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description ESD Suppressor TVS Bi-Dir 20V 2-Pin Case 0201 T/R
