BZX84C5V1

ProducentCentral SemiconductorEURoHSUnknown (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
BZX84C5V1_CENTRAL_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / BZX84C5V1

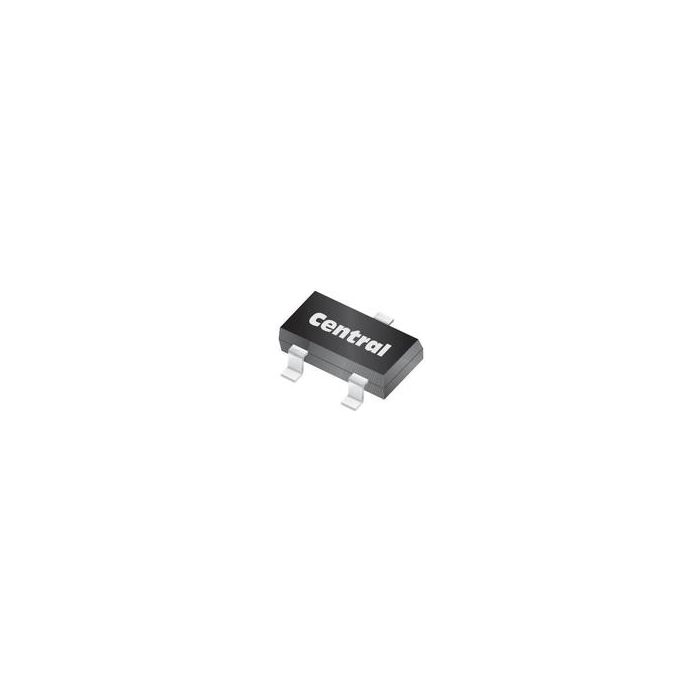

Diode Zener Single 5.1V 6% 350mW 3-Pin SOT-23

Informacje podstawowe

  • ProducentCentral Semiconductor
  • EURoHSUnknown (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 165
  • Inventory 2*
  • PCNs 1
  • MaskPart BZX84C5V1%
  • IntroductionDate Jan 24, 2003

Parametry

  • Configuration Single
  • Maximum Noise Density (uV/rtHz) N/A
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) 350
  • Maximum Regulator Current (mA) 49
  • Maximum Reverse Leakage Current (uA) 2
  • Maximum Voltage Regulation (mV) N/A
  • Maximum Zener Impedance (Ohm) 60
  • Minimum Operating Temperature (°C) -65
  • Nominal Zener Voltage (V) 5.1
  • Supplier Temperature Grade N/A
  • Test Current (mA) 5
  • Test Temperature Range (°C) N/A
  • Type Voltage Regulator
  • Typical Voltage Temperature Coefficient 0.02%/°C(Max)
  • Zener Voltage Tolerance 6%

Więcej informacji

Do pobrania Download
Main description Diode Zener Single 5.1V 6% 350mW 3-Pin SOT-23
