BZV55C75 L1G

ProducentTaiwan SemiconductorAutomotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
BZV55C75_L1G_TAIWAN_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / BZV55C75 L1G

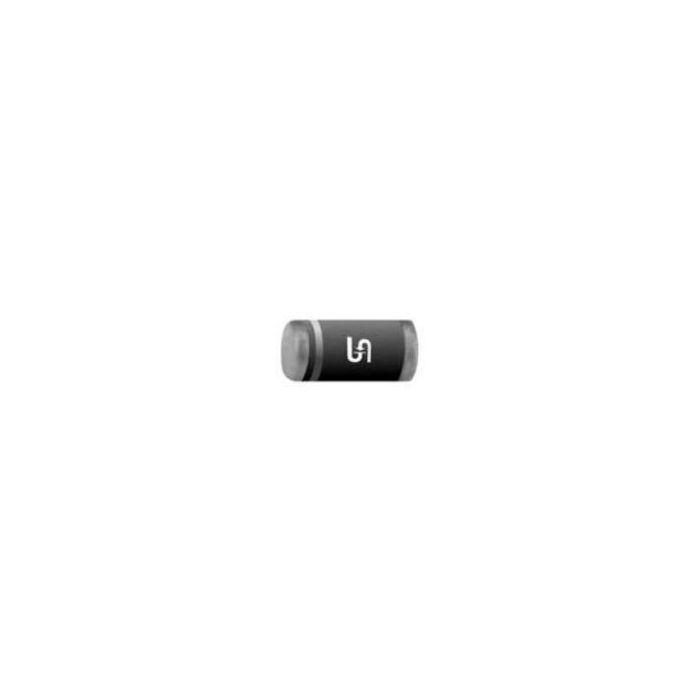

Diode Zener Single 75V 5% 500mW 2-Pin Mini-MELF

Informacje podstawowe

  • ProducentTaiwan Semiconductor
  • Automotive No

Informacje dodatkowe

  • Crosses 386
  • MaskPart BZV55C75%G

Parametry

  • Configuration Single
  • Maximum Noise Density (uV/rtHz) N/A
  • Maximum Operating Temperature (°C) 175
  • Maximum Power Dissipation (mW) 500
  • Maximum Regulator Current (mA) N/A
  • Maximum Reverse Leakage Current (uA) 0.1
  • Maximum Voltage Regulation (mV) N/A
  • Maximum Zener Impedance (Ohm) 170
  • Minimum Operating Temperature (°C) -65
  • Nominal Zener Voltage (V) 75
  • Supplier Temperature Grade N/A
  • Test Current (mA) 2.5
  • Test Temperature Range (°C) N/A
  • Type Voltage Regulator
  • Typical Voltage Temperature Coefficient N/A
  • Zener Voltage Tolerance 5%

Więcej informacji

Do pobrania Download
Main description Diode Zener Single 75V 5% 500mW 2-Pin Mini-MELF
