BTA40-800B

ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
BTA40-800B_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / BTA40-800B

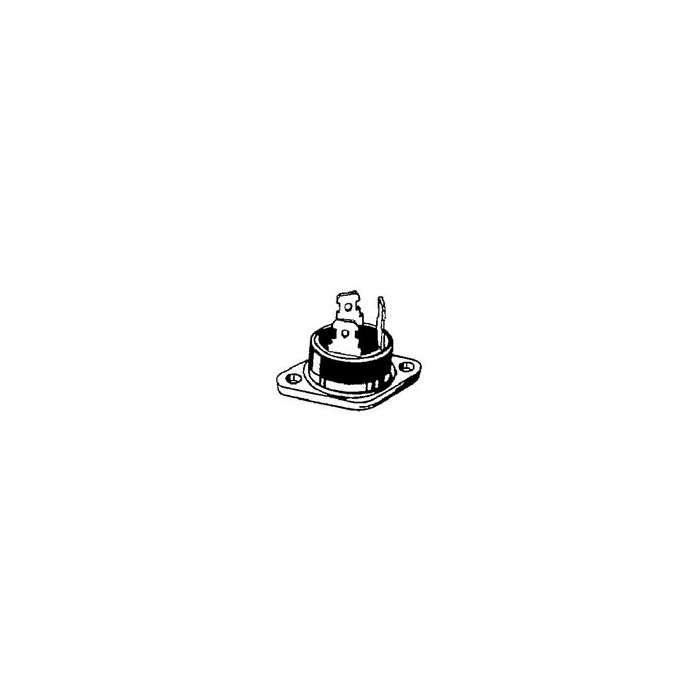

TRIAC 800V 420A 3-Pin RD-91 Bag

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 2
  • Inventory 7
  • PCNs 16
  • MaskPart BTA40800B%
  • IntroductionDate Dec 06, 2000

Parametry

  • AC Switch No
  • Maximum Gate Trigger Current (mA) 100
  • Maximum Gate Trigger Voltage (V) 1.3
  • Maximum Holding Current (mA) 80
  • Maximum Operating Temperature (°C) 125
  • Maximum Rate of Rise of Off-State Voltage (V/us) 500(Min)
  • Maximum Rate of Rise of On-State Current (A/us) 50
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -40
  • Operating Junction Temperature (°C) -40 to 125
  • Peak On-State Voltage (V) 1.55@60A
  • Rated Average On-State Current (A) N/A
  • Repetitive Peak Forward Blocking Voltage (V) 800
  • Repetitive Peak Off-State Current (mA) 0.005
  • Repetitive Peak Reverse Voltage (V) 800
  • Supplier Temperature Grade N/A
  • Surge Current Rating (A) 420

Więcej informacji

Do pobrania Download
Main description TRIAC 800V 420A 3-Pin RD-91 Bag
