BTA25-800B

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
BTA25-800B_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / BTA25-800B

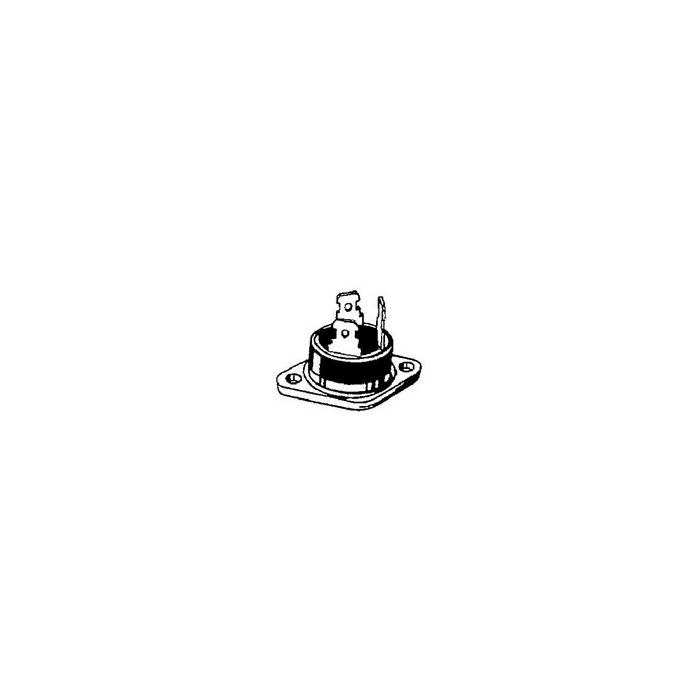

TRIAC 800V 260A 3-Pin RD-91 Bag

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 3
  • Inventory 5
  • PCNs 16
  • MaskPart BTA25800B%
  • IntroductionDate Aug 21, 1995

Parametry

  • AC Switch No
  • Maximum Gate Trigger Current (mA) 100
  • Maximum Gate Trigger Voltage (V) 1.5
  • Maximum Holding Current (mA) 80
  • Maximum Operating Temperature (°C) 125
  • Maximum Rate of Rise of Off-State Voltage (V/us) 250(Min)
  • Maximum Rate of Rise of On-State Current (A/us) 50
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -40
  • Operating Junction Temperature (°C) -40 to 125
  • Peak On-State Voltage (V) 1.8@42A
  • Rated Average On-State Current (A) N/A
  • Repetitive Peak Forward Blocking Voltage (V) 800
  • Repetitive Peak Off-State Current (mA) 0.01
  • Repetitive Peak Reverse Voltage (V) 800
  • Supplier Temperature Grade N/A
  • Surge Current Rating (A) 260

Więcej informacji

Do pobrania Download
Main description TRIAC 800V 260A 3-Pin RD-91 Bag
