BQ24073RGTR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
BQ24073RGTR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / BQ24073RGTR

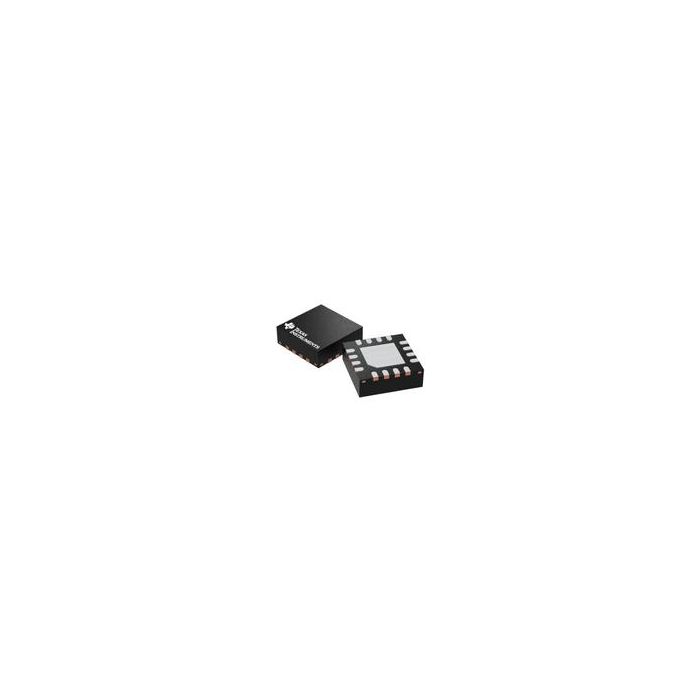

Linear Battery Charger Li-Ion 1500mA 4.2V 16-Pin VQFN EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 469
  • Inventory 6
  • PCNs 57
  • GIDEP-Alerts 1
  • MaskPart BQ24073RG%
  • IntroductionDate Oct 01, 2007
  • AliasParts BQ24073RGTRG4

Parametry

  • Battery Type Li-Ion
  • Maximum Operating Supply Voltage (V) 6.4
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) 2300
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 1.5
  • Minimum Operating Supply Voltage (V) 4.35
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Operating Supply Voltage (V) N/A
  • Output Current (mA) 1500(Max)
  • Output Voltage (V) 4.2
  • Supplier Temperature Grade N/A
  • Type Linear Battery Charger
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Linear Battery Charger Li-Ion 1500mA 4.2V 16-Pin VQFN EP T/R
