BC847BS

ProducentDiodes IncorporatedEURoHSNo (2011/65/EU)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
BC847BS_DIODES_INCORPORATED
material
N/A
0,00 zł

Zapytaj o ten produkt

Opis / BC847BS

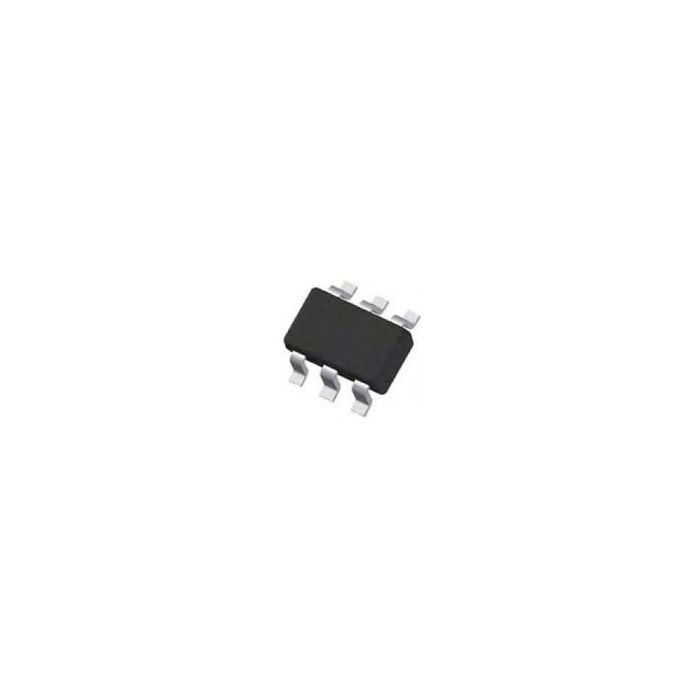

Trans GP BJT NPN 45V 0.1A 200mW Automotive 6-Pin SOT-363

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSNo (2011/65/EU)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 92
  • Inventory 7*
  • PCNs 17
  • MaskPart BC847BS%
  • IntroductionDate Oct 07, 2002

Parametry

  • Category Bipolar Small Signal
  • Configuration Dual
  • Material N/A
  • Maximum 3rd Order Intercept Point (dBm) N/R
  • Maximum Base Emitter Saturation Voltage (V) 0.755(Typ)@0.5mA@10mA
  • Maximum Collector Base Voltage (V) 50
  • Maximum Collector Cut-Off Current (nA) 20
  • Maximum Collector-Emitter Saturation Voltage (V) 0.1@0.5mA@10mA|0.4@5mA@100mA
  • Maximum Collector-Emitter Voltage (V) 45
  • Maximum DC Collector Current (A) 0.1
  • Maximum Emitter Base Voltage (V) 6
  • Maximum Operating Temperature (°C) 150
  • Maximum Power 1dB Compression (dBm) N/R
  • Maximum Power Dissipation (mW) 200
  • Maximum Storage Temperature (°C) 150
  • Maximum Transition Frequency (MHz) 100(Min)
  • Minimum DC Current Gain 200@2mA@5V
  • Minimum Operating Temperature (°C) -65
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 2
  • Operational Bias Conditions N/R
  • Output Power (W) N/R
  • Supplier Temperature Grade N/A
  • Type NPN
  • Typical Power Gain (dB) N/R

Więcej informacji

Do pobrania Download
Main description Trans GP BJT NPN 45V 0.1A 200mW Automotive 6-Pin SOT-363
