BC847BM,315

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
BC847BM,315_NEXPERIA
material
N/A
0,00 zł

Zapytaj o ten produkt

Opis / BC847BM,315

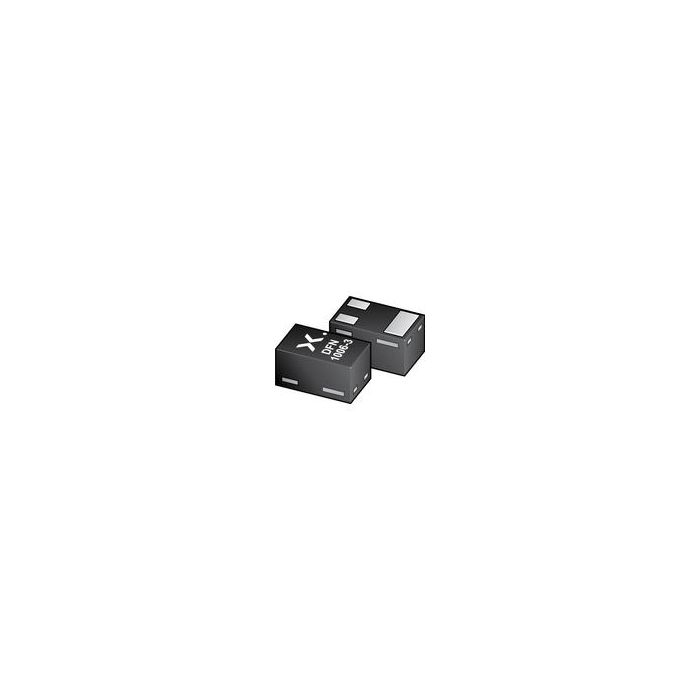

Trans GP BJT NPN 45V 0.1A 250mW Automotive 3-Pin DFN T/R

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 8
  • Inventory 8
  • PCNs 20
  • GIDEP-Alerts 1
  • MaskPart BC847BM%
  • IntroductionDate Jul 15, 2003
  • AliasParts 934057150315BC847BM T/R

Parametry

  • Category Bipolar Small Signal
  • Configuration Single
  • Material N/A
  • Maximum 3rd Order Intercept Point (dBm) N/R
  • Maximum Base Emitter Saturation Voltage (V) 0.7(Typ)@0.5mA@10mA|0.9(Typ)@5mA@100mA
  • Maximum Collector Base Voltage (V) 50
  • Maximum Collector-Emitter Saturation Voltage (V) 0.2@0.5mA@10mA|0.4@5mA@100mA
  • Maximum Collector-Emitter Voltage (V) 45
  • Maximum DC Collector Current (A) 0.1
  • Maximum Delay Time (ns) N/A
  • Maximum Emitter Base Voltage (V) 6
  • Maximum Fall Time (ns) N/A
  • Maximum Noise Figure (dB) 10
  • Maximum Operating Temperature (°C) 150
  • Maximum Power 1dB Compression (dBm) N/R
  • Maximum Power Dissipation (mW) 250
  • Maximum Rise Time (ns) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Storage Time (ns) N/A
  • Maximum Transition Frequency (MHz) 100(Min)
  • Maximum Turn-Off Time (ns) N/A
  • Maximum Turn-On Time (ns) N/A
  • Minimum DC Current Gain 200@2mA@5V
  • Minimum Operating Temperature (°C) -65
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Operational Bias Conditions N/R
  • Output Power (W) N/R
  • Supplier Temperature Grade Automotive
  • Type NPN
  • Typical Power Gain (dB) N/R

Więcej informacji

Do pobrania Download
Main description Trans GP BJT NPN 45V 0.1A 250mW Automotive 3-Pin DFN T/R
