BC847A

ProducentInfineon Technologies AGEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
BC847A_INFINEON_TECHNOLOGIES_AG
material
Si
0,00 zł

Zapytaj o ten produkt

Opis / BC847A

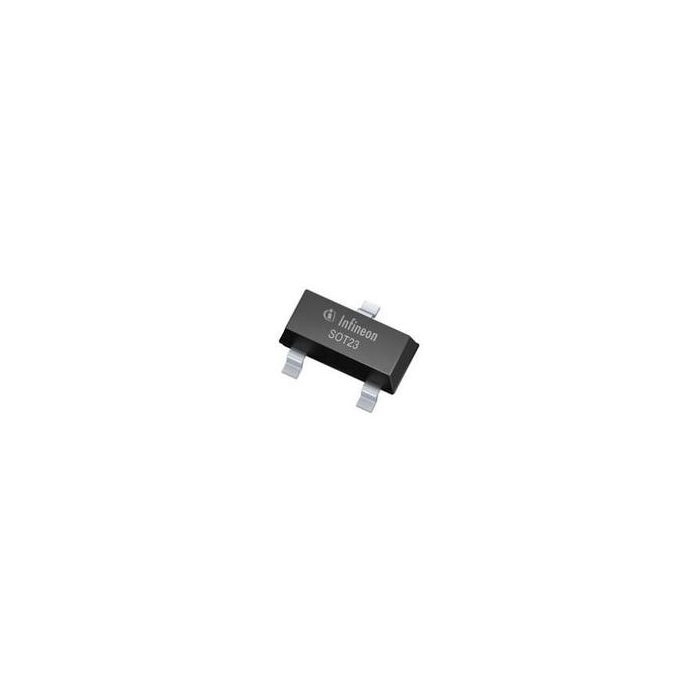

Trans GP BJT NPN 45V 0.1A 330mW Automotive 3-Pin SOT-23 T/R

Informacje podstawowe

  • ProducentInfineon Technologies AG
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 399
  • Inventory 2*
  • PCNs 18
  • MaskPart BC847A%
  • IntroductionDate Apr 01, 1996
  • SupplierUrl http://www.infineon.com/cms/en/product/findProductTypeByName.html?q=BC847A

Parametry

  • Category Bipolar Small Signal
  • Configuration Single
  • Material Si
  • Maximum Base Emitter Saturation Voltage (V) 0.7(Typ)@0.5mA@10mA|0.9(Typ)@5mA@100mA
  • Maximum Collector Base Voltage (V) 50
  • Maximum Collector-Emitter Saturation Voltage (V) 0.25@0.5mA@10mA|0.6@5mA@100mA
  • Maximum Collector-Emitter Voltage (V) 45
  • Maximum DC Collector Current (A) 0.1
  • Maximum Emitter Base Voltage (V) 6
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) 330
  • Maximum Storage Temperature (°C) 150
  • Maximum Transition Frequency (MHz) 250(Typ)
  • Minimum DC Current Gain 110@2mA@5V
  • Minimum Operating Temperature (°C) -65
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Output Power (W) N/R
  • Supplier Temperature Grade Automotive
  • Type NPN

Więcej informacji

Do pobrania Download
Main description Trans GP BJT NPN 45V 0.1A 330mW Automotive 3-Pin SOT-23 T/R
