BC807-25HZ

ProducentNexperiaAutomotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
BC807-25HZ_NEXPERIA
material
N/A
0,00 zł

Zapytaj o ten produkt

Opis / BC807-25HZ

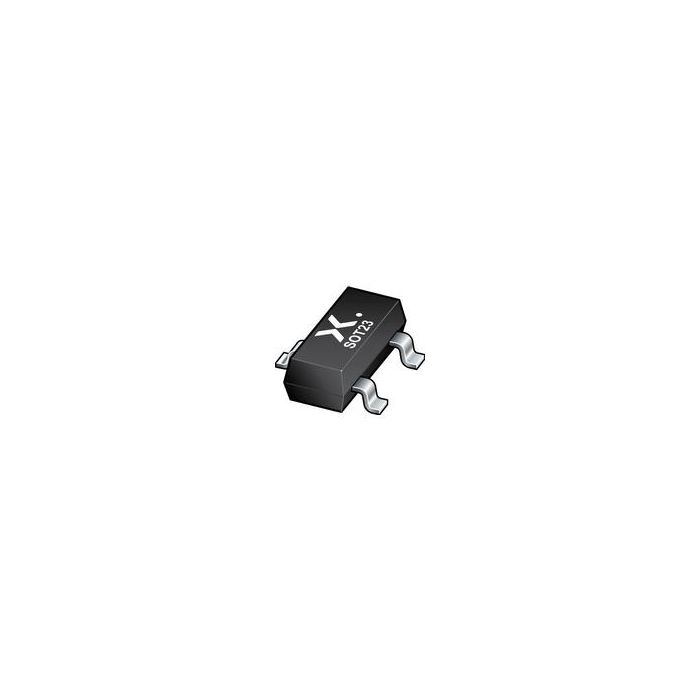

Trans GP BJT PNP 45V 0.5A 540mW Automotive 3-Pin TO-236AB T/R

Informacje podstawowe

  • ProducentNexperia
  • Automotive Yes

Informacje dodatkowe

  • Crosses 7
  • PCNs 2
  • MaskPart BC80725H%

Parametry

  • Category Bipolar Small Signal
  • Configuration Single
  • Material N/A
  • Maximum 3rd Order Intercept Point (dBm) N/R
  • Maximum Base Emitter Saturation Voltage (V) 1.2@50mA@500mA
  • Maximum Collector Base Voltage (V) 50
  • Maximum Collector-Emitter Saturation Voltage (V) 0.7@50mA@500mA
  • Maximum Collector-Emitter Voltage (V) 45
  • Maximum DC Collector Current (A) 0.5
  • Maximum Delay Time (ns) N/A
  • Maximum Emitter Base Voltage (V) 7
  • Maximum Fall Time (ns) N/A
  • Maximum Noise Figure (dB) N/A
  • Maximum Operating Temperature (°C) 175
  • Maximum Power 1dB Compression (dBm) N/R
  • Maximum Power Dissipation (mW) 540
  • Maximum Rise Time (ns) N/A
  • Maximum Storage Temperature (°C) 175
  • Maximum Storage Time (ns) N/A
  • Maximum Transition Frequency (MHz) 80(Min)
  • Maximum Turn-Off Time (ns) N/A
  • Maximum Turn-On Time (ns) N/A
  • Minimum DC Current Gain 160@100mA@1V|40@500mA@1V
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Operational Bias Conditions N/R
  • Output Power (W) N/R
  • Supplier Temperature Grade N/A
  • Type PNP
  • Typical Input Capacitance (pF) 45
  • Typical Output Capacitance (pF) 7
  • Typical Power Gain (dB) N/R

Więcej informacji

Do pobrania Download
Main description Trans GP BJT PNP 45V 0.5A 540mW Automotive 3-Pin TO-236AB T/R
