BAT754A

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
BAT754A_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / BAT754A

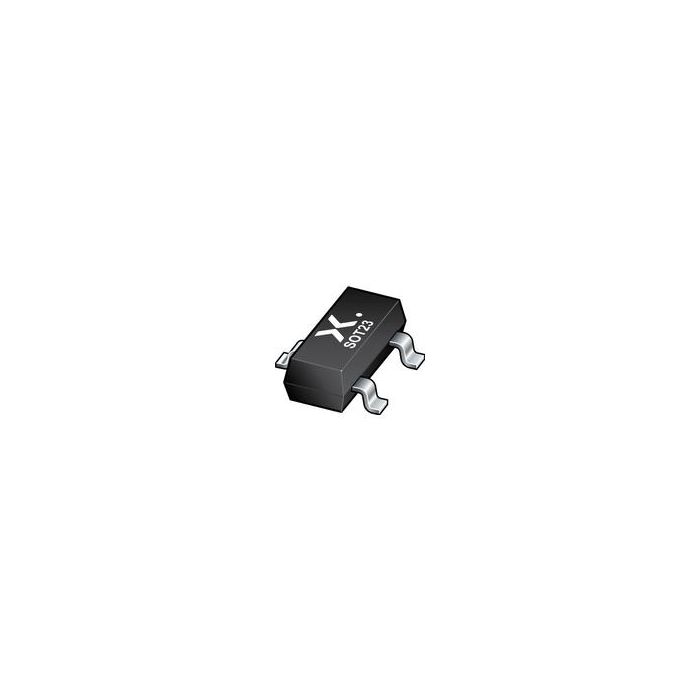

Diode Schottky 30V 0.2A Automotive 3-Pin TO-236AB

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 40
  • Inventory 7*
  • PCNs 15
  • MaskPart BAT754A%
  • IntroductionDate Aug 05, 1999

Parametry

  • Configuration Dual Common Anode
  • Maximum Continuous Forward Current (A) 0.2
  • Maximum Diode Capacitance (pF) 10
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum RMS Reverse Voltage (V) N/A
  • Minimum Operating Temperature (°C) -65
  • Operating Junction Temperature (°C) 125
  • Peak Forward Voltage (V) 0.42@0.03A
  • Peak Non-Repetitive Surge Current (A) 0.6
  • Peak Reverse Current (uA) 2@25V
  • Peak Reverse Recovery Time (ns) N/A
  • Peak Reverse Repetitive Voltage (V) 30
  • Supplier Temperature Grade Automotive
  • Type Schottky Diode

Więcej informacji

Do pobrania Download
Main description Diode Schottky 30V 0.2A Automotive 3-Pin TO-236AB
