BAT54S,215

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
BAT54S,215_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / BAT54S,215

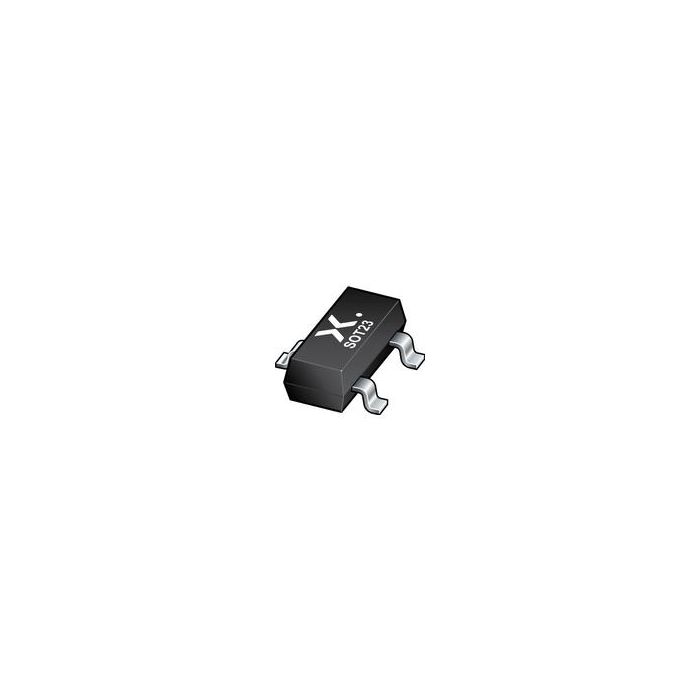

Diode Schottky 0.2A Automotive 3-Pin TO-236AB T/R

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 36
  • Inventory 10
  • PCNs 15
  • MaskPart BAT54S%
  • IntroductionDate Mar 18, 1996
  • AliasParts BAT54S T/R

Parametry

  • Configuration Dual Series
  • Maximum Continuous Forward Current (A) 0.2
  • Maximum DC Reverse Voltage (V) 30
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) 250
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -65
  • Operating Junction Temperature (°C) 150
  • Peak Forward Voltage (V) 0.8@0.1A
  • Peak Non-Repetitive Surge Current (A) 0.6
  • Peak Reverse Current (uA) 2@25V
  • Peak Reverse Recovery Time (ns) 5
  • Peak Reverse Repetitive Voltage (V) N/A
  • Supplier Temperature Grade Automotive
  • Type Schottky Diode

Więcej informacji

Do pobrania Download
Main description Diode Schottky 0.2A Automotive 3-Pin TO-236AB T/R
