BAT41ZFILM

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
BAT41ZFILM_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / BAT41ZFILM

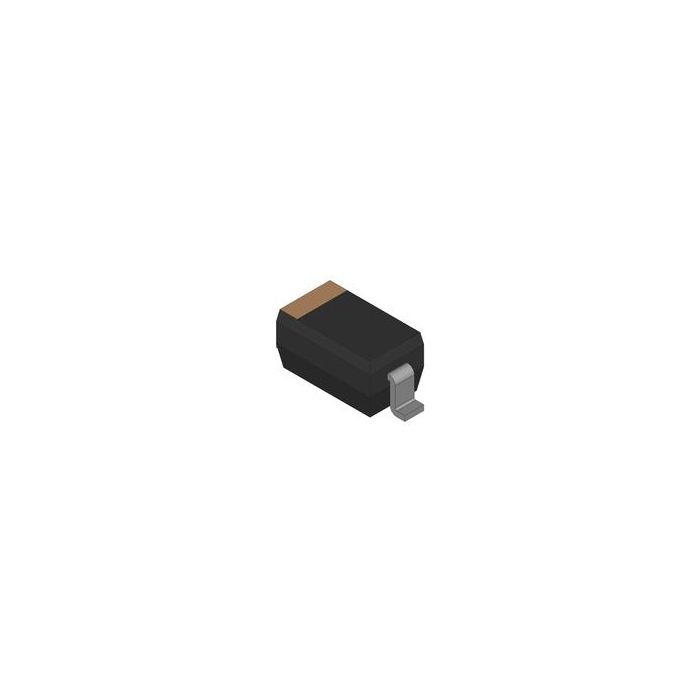

Diode Small Signal Schottky 100V 0.2A 2-Pin SOD-123 T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 41
  • Inventory 7
  • PCNs 13
  • MaskPart BAT41ZFILM%
  • IntroductionDate Aug 08, 2006

Parametry

  • Configuration Single
  • Maximum Continuous Forward Current (A) 0.2
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) N/A
  • Minimum Operating Temperature (°C) -65
  • Operating Junction Temperature (°C) 150
  • Peak Forward Voltage (V) 1
  • Peak Non-Repetitive Surge Current (A) 1
  • Peak Reverse Current (uA) 0.1@50V
  • Peak Reverse Recovery Time (ns) N/A
  • Peak Reverse Repetitive Voltage (V) 100
  • Supplier Temperature Grade N/A
  • Type Small Signal Schottky Diode

Więcej informacji

Do pobrania Download
Main description Diode Small Signal Schottky 100V 0.2A 2-Pin SOD-123 T/R
