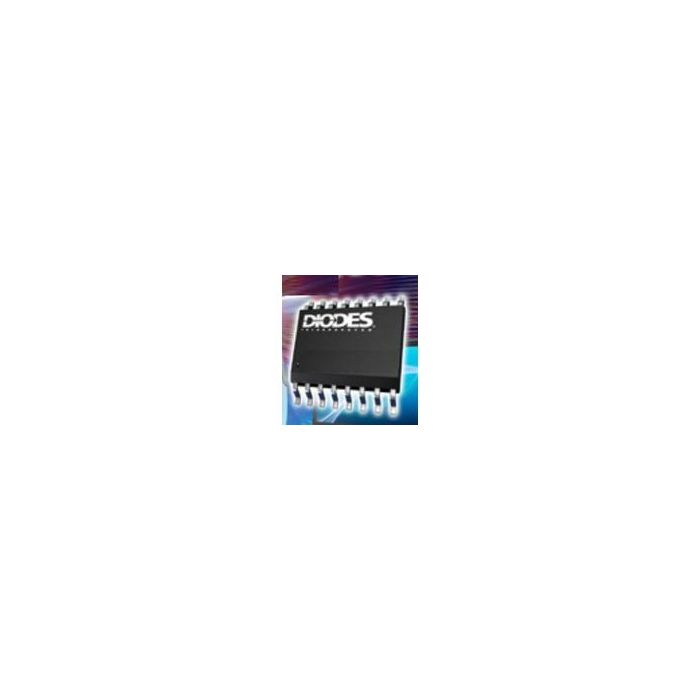

AZ494CMTR

ProducentDiodes IncorporatedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AZ494CMTR_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AZ494CMTR

Voltage Mode PWM Controller 40V 250mA 200kHz 16-Pin SOIC

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 39
  • PCNs 15
  • MaskPart AZ494CM%
  • IntroductionDate May 27, 2003

Parametry

  • Adjustable Output No
  • Control Method Voltage Mode PWM Controller
  • Fall Time (ns) 25
  • Maximum Duty Cycle (%) 45(Min)
  • Maximum Operating Supply Voltage (V) 36
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Supply Current (mA) 10
  • Minimum Operating Supply Voltage (V) 7
  • Minimum Operating Temperature (°C) -40
  • Number of PWM Outputs 2
  • On/Off Pin No
  • Operating Supply Voltage (V) 15
  • Output Current (mA) 250(Max)
  • Output Voltage (V) 40(Max)
  • Rise Time (ns) 100
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 200
  • Synchronous Pin No
  • Topology N/A
  • Type Voltage Mode PWM Controller
  • Typical Operating Supply Voltage (V) 15

Więcej informacji

Do pobrania Download
Main description Voltage Mode PWM Controller 40V 250mA 200kHz 16-Pin SOIC
