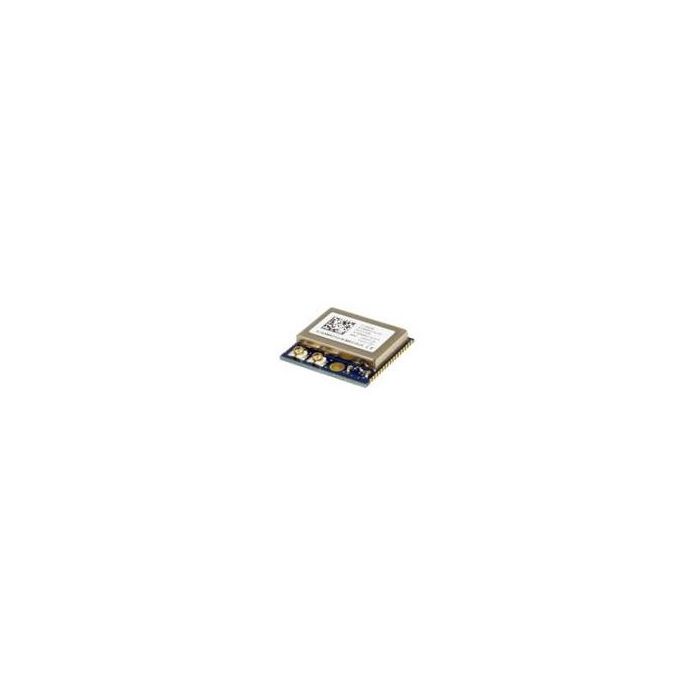

ATSAMR21G18-MR210UA-T

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ATSAMR21G18-MR210UA-T_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / ATSAMR21G18-MR210UA-T

802.15.4/ZigBee SOC 2400MHz 12000Kbps 42-Pin SMD Module T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 5
  • PCNs 46
  • MaskPart ATSAMR21G18MR210UAT%

Parametry

  • Antenna Mounting External
  • External Antenna Connector Type U.FL
  • Flash Size (KB) 256
  • ISM Band N/R
  • Indoor Range N/A
  • Interface I2C/SPI/UART
  • Internal Antenna Type N/A
  • Maximum Current Consumption (RX) (mA) N/A
  • Maximum Current Consumption (TX) (mA) N/A
  • Maximum Data Rate (Kbps) 12000
  • Maximum Operating Frequency (MHz) 2400(Typ)
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Power 3.5dBm(Typ)
  • Maximum Storage Temperature (°C) 125
  • Minimum Operating Frequency (MHz) N/A
  • Minimum Operating Supply Voltage (V) 1.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -40
  • Modulation Technique N/A
  • Module/IC Classification Module
  • Number of Channels N/A
  • Outdoor Range N/A
  • Process Technology N/A
  • Processing Unit Type Microcontroller
  • Protocol Stack 802.15.4/ZigBee
  • RAM Size (KB) N/A
  • Solutions N/A
  • Special Features N/A
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 3.3
  • Typical Sensitivity -98dBm

Więcej informacji

Do pobrania Download
Main description 802.15.4/ZigBee SOC 2400MHz 12000Kbps 42-Pin SMD Module T/R
