ATmega48PA-AUR
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit AVR RISC 4KB Flash 2.5V/3.3V/5V 32-Pin TQFP T/R |

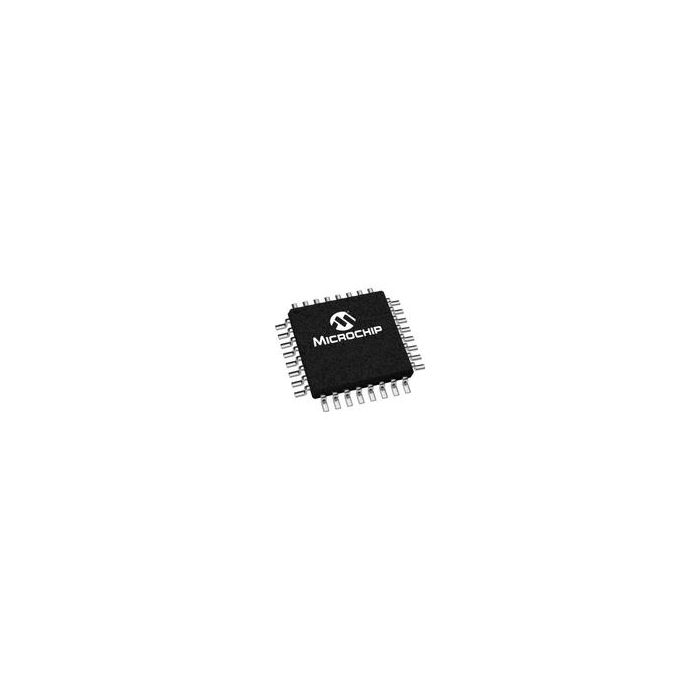

MCU 8-bit AVR RISC 4KB Flash 2.5V/3.3V/5V 32-Pin TQFP T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 3
- Inventory 8
- PCNs 58
- MaskPart ATmega48PAAU%
- AliasParts ATMEGA48PA-AU-SL383
Parametry
- ADC Channels 8
- ADC Resolution (bit) 10
- Analog Comparators 1
- CAN 0
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core AVR
- Display Driver N/A
- Ethernet 0
- Family Name ATmega
- I2C 0
- I2S 0
- Instruction Set Architecture RISC
- Interface Type SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 20
- Maximum Clock Rate (MHz) 20
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 23
- Number of Timers 3
- PWM 6
- Program Memory Size 4KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 512B
- SPI 1
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 0
- USART 1
- USB 0
- Watchdog 1
