ATmega32A-AUR
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit AVR RISC 32KB Flash 3.3V/5V 44-Pin TQFP T/R |

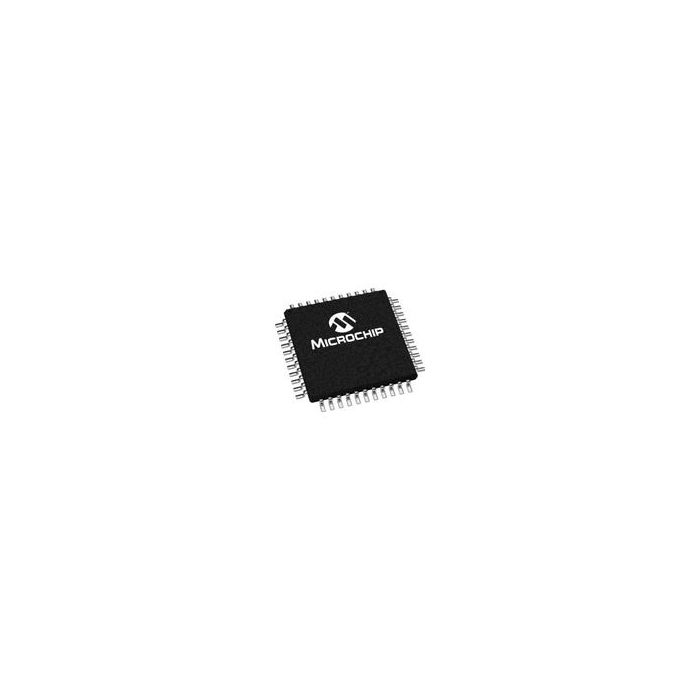

MCU 8-bit AVR RISC 32KB Flash 3.3V/5V 44-Pin TQFP T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 5
- Inventory 8
- PCNs 56
- GIDEP-Alerts 3
- MaskPart ATMEGA32AAUR%
- IntroductionDate Nov 08, 2004
Parametry
- ADC Channels 8
- ADC Resolution (bit) 10
- Analog Comparators 1
- CAN 0
- Core Architecture AVR
- DAC Channels N/A
- DAC Resolution (bit) N/A
- DMA Channels N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core AVR
- Display Driver N/A
- Ethernet 0
- Family Name ATmega
- I2C 0
- I2S 0
- Instruction Set Architecture RISC
- Interface Type SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 16
- Maximum Clock Rate (MHz) 16
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 32
- Number of Timers 3
- PWM 4
- Program Memory Size 32KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 2KB
- SPI 1
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 1
- USART 1
- USB 0
- Watchdog 1
