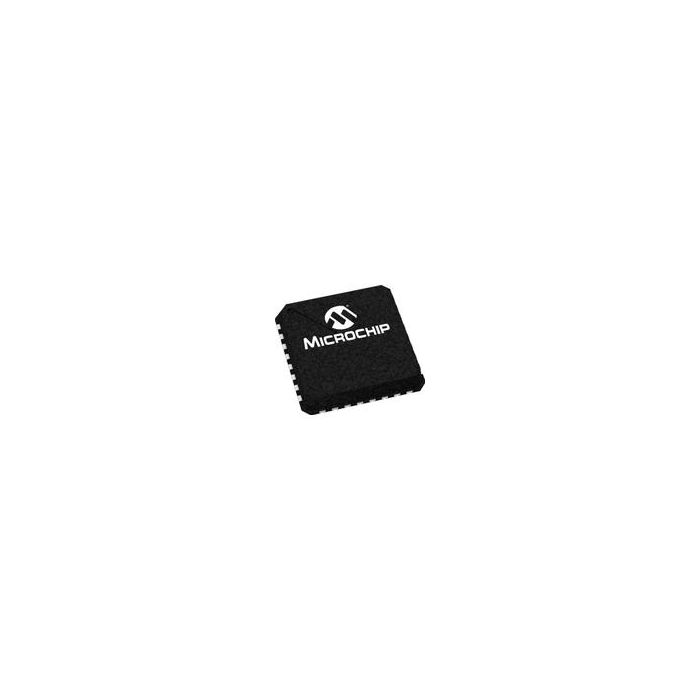

ATmega168-15MD
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit ATmega AVR RISC 16KB Flash 3.3V/5V Automotive 32-Pin QFN EP |
MCU 8-bit ATmega AVR RISC 16KB Flash 3.3V/5V Automotive 32-Pin QFN EP
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU)
- Automotive Yes
Informacje dodatkowe
- Crosses 7
- Inventory 2
- PCNs 48
- GIDEP-Alerts 1
- MaskPart ATMEGA16815MD%
- IntroductionDate May 02, 1997
Parametry
- ADC Channels 8
- ADC Resolution (bit) 10
- Analog Comparators 1
- CAN 0
- Core Architecture AVR
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core AVR
- Display Driver N/A
- Ethernet 0
- Family Name ATmega
- I2C 1
- I2S 0
- Instruction Set Architecture RISC
- Interface Type I2C/SPI/UART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 16
- Maximum Clock Rate (MHz) 16
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 175
- Minimum Storage Temperature (°C) -65
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 23
- Number of Timers 3
- PWM 1
- Parallel Master Port No
- Program Memory Size 16KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 1KB
- Real Time Clock Yes
- SPI 2
- Special Features N/A
- Supplier Temperature Grade Extended
- Temperature Flag Opr
- Timers Channels N/A
- Timers Resolution (bit) N/A
- UART 1
- USART 0
- USB 0
- Watchdog 1
