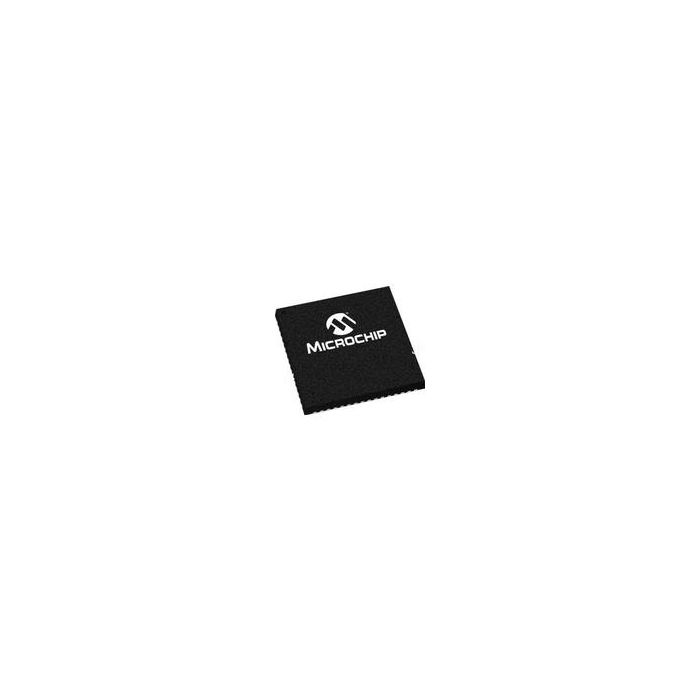

ATMEGA128RFA1-ZU
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit AVR RISC 128KB Flash 2.5V/3.3V 64-Pin QFN EP Tray |
MCU 8-bit AVR RISC 128KB Flash 2.5V/3.3V 64-Pin QFN EP Tray
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- Inventory 5
- PCNs 50
- GIDEP-Alerts 1
- MaskPart ATMEGA128RFA1ZU%
- IntroductionDate Dec 07, 2009
Parametry
- ADC Channels 8
- ADC Resolution (bit) 10
- Analog Comparators 1
- CAN 0
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core AVR
- Display Driver N/A
- Ethernet 0
- Family Name ATmega
- I2C 1
- I2S 0
- ISM Band 2.4GHz
- Instruction Set Architecture RISC
- Interface Type JTAG/SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 16
- Maximum Clock Rate (MHz) 16
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -50
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 38
- Number of Timers 6
- PWM N/A
- Program Memory Size 128KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 16KB
- SPI 1
- Solutions AMR|ISM
- Special Features N/A
- Temperature Flag Opr
- UART 0
- USART 2
- USB 0
- Watchdog 1
