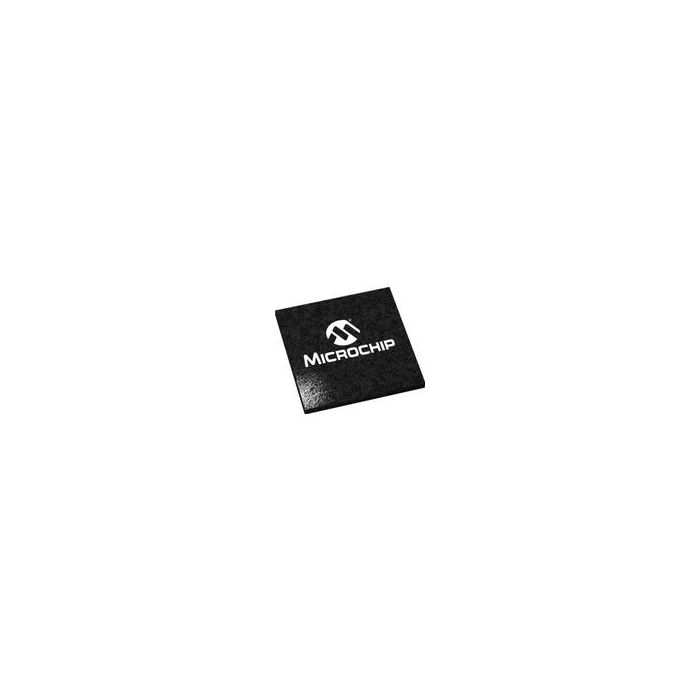

AT91SAM9260B-CU
| Do pobrania | Download |
|---|---|
| Main description | MCU 32-bit ARM926EJ-S RISC 32KB ROM 1.8V/3.3V 217-Pin LFBGA Tray |
MCU 32-bit ARM926EJ-S RISC 32KB ROM 1.8V/3.3V 217-Pin LFBGA Tray
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 1
- Inventory 10
- PCNs 50
- GIDEP-Alerts 2
- MaskPart AT91SAM9260BCU%
- IntroductionDate Nov 16, 2004
Parametry
- ADC Channels 4
- ADC Resolution (bit) 10
- Analog Comparators N/A
- CAN 0
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 32
- Data Memory Size N/A
- Device Core ARM926EJ-S
- Display Driver N/A
- Ethernet 1
- Family Name SAM9X
- I2C 1
- I2S 0
- Instruction Set Architecture RISC
- Interface Type 2-Wire/EBI/I2S/SPI/USART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 180
- Maximum Clock Rate (MHz) 180
- Maximum Expanded Memory Size 4GB
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -60
- Number of ADCs Single
- Number of DACs N/A
- Number of Programmable I/Os 96
- Number of Timers 6
- PWM N/A
- Program Memory Size 32KB
- Program Memory Type ROM
- Programmability Yes
- RAM Size 8KB
- SPI 2
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 2
- USART 4
- USB 2
- Watchdog 1
