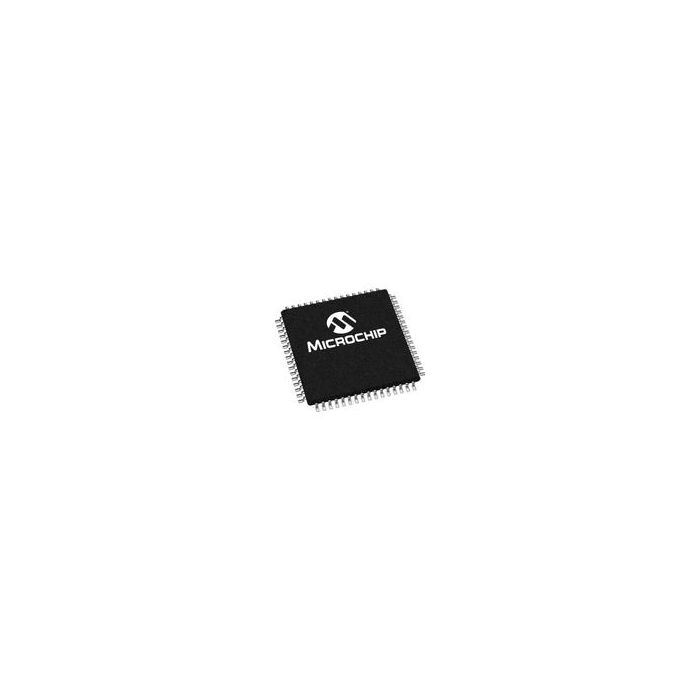

AT91SAM7S512B-AU

Powiadom mnie gdy produkt będzie dostępny

Więcej informacji
Do pobrania	Download
Main description	MCU 32-bit ARM7TDMI RISC 512KB Flash 1.8V/3.3V 64-Pin LQFP Tray

PARAMETRY PRODUKTU

MCU 32-bit ARM7TDMI RISC 512KB Flash 1.8V/3.3V 64-Pin LQFP Tray

Informacje podstawowe

ProducentMicrochip Technology
EURoHSYes (2011/65/EU)
Automotive No

Informacje dodatkowe

Crosses 435
Inventory 10
PCNs 45
MaskPart AT91SAM7S512BAU%
IntroductionDate May 02, 1997

Parametry

ADC Channels 8
ADC Resolution (bit) 10
Analog Comparators N/A
Bluetooth No
CAN 0
CAN Type N/A
DAC Channels N/A
DAC Resolution (bit) N/A
DDR No
DMA Channels N/A
Data Bus Width (bit) 32
Data Cache Size N/A
Data Memory Size N/A
Device Core ARM7TDMI
Direct Memory Access Yes
Display Driver N/A
EEPROM N/A
Encryption Standard N/A
Ethernet 0
Ethernet Interface Type N/A
Ethernet Speed N/A
External Bus Interface No
Family Name SAM7S
Floating Point Unit No
Hardware Acceleration N/A
I2C 1
I2S 0
ISM Band N/A
Input Capture Channels N/A
Instruction Cache Size N/A
Instruction Set Architecture RISC
Integrated Development Environment No
Interface Type SPI/TWI/USART/USB
Internal/External Clock Type Internal/External
LCD Segments N/A
Maximum CPU Frequency (MHz) 55
Maximum Clock Rate (MHz) 55
Maximum Dhrystone MIPS (MIPS) N/A
Maximum Expanded Memory Size 256MB
Maximum Operating Supply Voltage (V) 1.95|3.6
Maximum Operating Temperature (°C) 85
Maximum Power Dissipation (mW) N/A
Maximum Storage Temperature (°C) 150
Memory Management Unit No
Memory Protection Unit No
Minimum Operating Supply Voltage (V) 1.65|3
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -60
Multiply Accumulate No
Number of ADCs Single
Number of DACs N/A
Number of Programmable I/Os 32
Number of Timers 3
Operating Supply Voltage (V) 1.8|3.3
Output Compare Channels N/A
PWM 1
Parallel Master Port No
Power On Reset No
Program Memory Size 512KB
Program Memory Type Flash
Programmability Yes
RAM Size 64KB
Real Time Clock No
SPI 1
Solutions N/A
Special Features N/A
Super Scalar No
Supplier Temperature Grade Industrial
Temperature Flag Opr
Temperature Sensor Yes
Timers Channels N/A
Timers Resolution (bit) N/A
Touch Sensing Interface No
Trace Hardware JTAG
Typical Operating Supply Voltage (V) 1.8|3.3
UART 1
USART 2
USB 1
Watchdog 1
Wi-Fi No
