AT89C4051-24PU

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT89C4051-24PU_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT89C4051-24PU

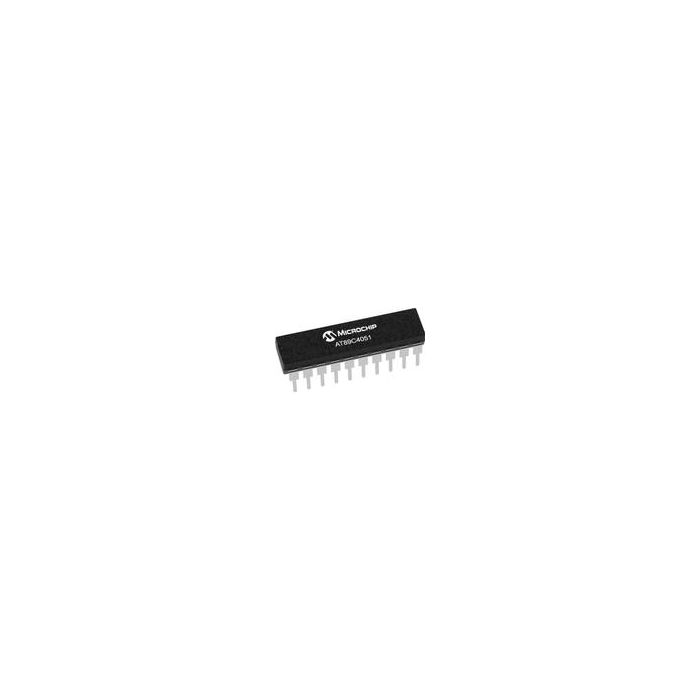

MCU 8-bit 8051 CISC 4KB Flash 5V 20-Pin PDIP W Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 30
  • Inventory 11
  • PCNs 53
  • GIDEP-Alerts 5
  • MaskPart AT89C405124PU%
  • IntroductionDate May 02, 1997

Parametry

  • ADC Channels N/A
  • ADC Resolution (bit) N/A
  • CAN 0
  • Core Architecture 8051
  • DAC Channels N/A
  • DAC Resolution (bit) N/A
  • DMA Channels N/A
  • Data Bus Width (bit) 8
  • Device Core 8051
  • Ethernet 0
  • Family Name AT89
  • I2C 0
  • I2S 0
  • Instruction Set Architecture CISC
  • Interface Type UART
  • Maximum CPU Frequency (MHz) 24
  • Maximum Clock Rate (MHz) 24
  • Maximum Expanded Memory Size N/A
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) N/A
  • Minimum Operating Supply Voltage (V) 4
  • Minimum Operating Temperature (°C) 0
  • Number of ADCs N/A
  • Number of DACs N/A
  • Number of Programmable I/Os 15
  • Number of Timers 2
  • Operating Supply Voltage (V) 5
  • Program Memory Size 4KB
  • Program Memory Type Flash
  • Programmability Yes
  • RAM Size 128B
  • SPI 0
  • Special Features N/A
  • Supplier Temperature Grade Commercial
  • Temperature Flag Opr
  • Typical Operating Supply Voltage (V) 5
  • UART 1
  • USART 0
  • USB 0

Więcej informacji

Do pobrania Download
Main description MCU 8-bit 8051 CISC 4KB Flash 5V 20-Pin PDIP W Tube
