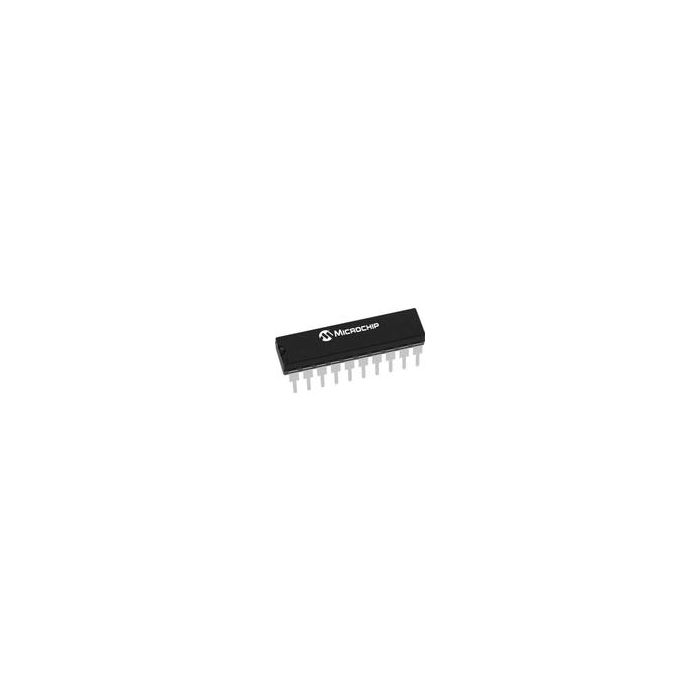

AT89C2051-24PU
| Do pobrania | Download |
|---|---|
| Main description | MCU 8-bit 8051 CISC 2KB Flash 5V 20-Pin PDIP W Tube |
MCU 8-bit 8051 CISC 2KB Flash 5V 20-Pin PDIP W Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 19
- Inventory 11
- PCNs 50
- MaskPart AT89C205124PU%
- IntroductionDate May 02, 1997
Parametry
- ADC Channels N/A
- ADC Resolution (bit) N/A
- Analog Comparators 1
- CAN 0
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 8
- Data Memory Size N/A
- Device Core 8051
- Display Driver N/A
- Ethernet 0
- Family Name AT89
- I2C 0
- I2S 0
- Instruction Set Architecture CISC
- Interface Type UART
- LCD Segments N/A
- Maximum CPU Frequency (MHz) 24
- Maximum Clock Rate (MHz) 24
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of ADCs N/A
- Number of DACs N/A
- Number of Programmable I/Os 15
- Number of Timers 2
- PWM N/A
- Program Memory Size 2KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 128B
- SPI 0
- Special Features N/A
- Supplier Temperature Grade Industrial
- Temperature Flag Opr
- UART 1
- USART 0
- USB 0
- Watchdog N/A
