AT88SC0404CA-Y6H-T

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT88SC0404CA-Y6H-T_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT88SC0404CA-Y6H-T

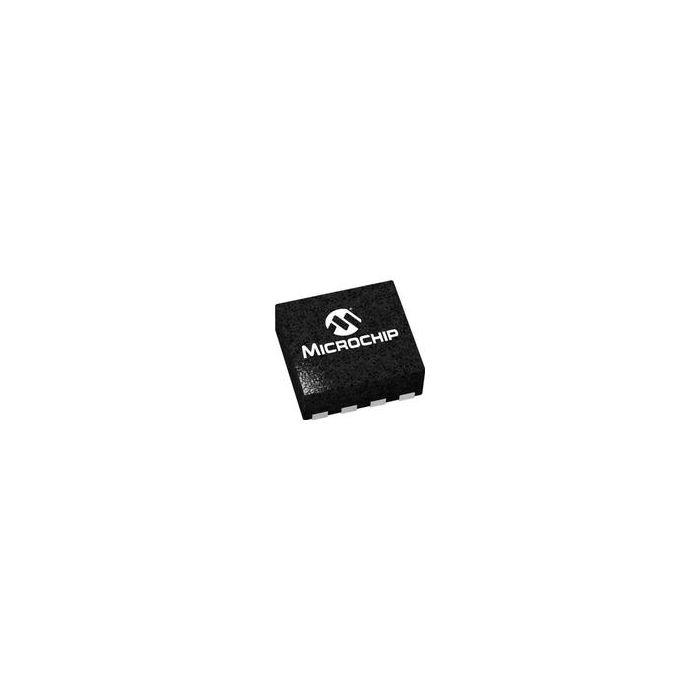

EEPROM Serial-2Wire 4K-bit 1K x 4 3.3V/5V 8-Pin UDFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • PCNs 46
  • MaskPart AT88SC0404CAY6HT%
  • IntroductionDate May 02, 1997

Parametry

  • Data Retention (Year) 10
  • Density (bit) 4K
  • Density in Bits (bit) 4096
  • Hardware Data Protection No
  • Interface Type Serial-2Wire
  • Maximum Access Time (ns) 250
  • Maximum Operating Current (mA) 5
  • Maximum Operating Frequency (MHz) 4
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 1Kx4
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-2Wire 4K-bit 1K x 4 3.3V/5V 8-Pin UDFN EP T/R
