AT86RF233-ZU

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT86RF233-ZU_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT86RF233-ZU

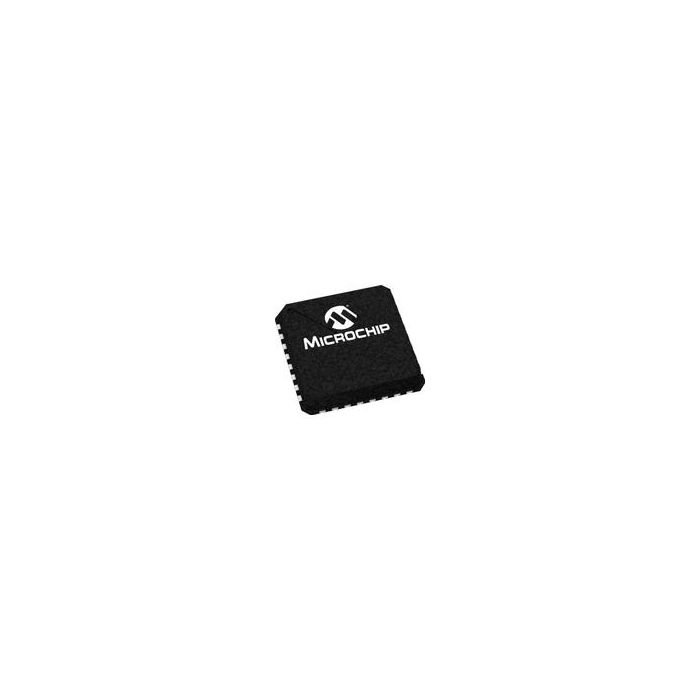

6LoWPAN/802.15.4/ZigBee SOC 2527MHz 2000Kbps 32-Pin QFN EP Tray

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Inventory 9
  • PCNs 47
  • GIDEP-Alerts 1
  • MaskPart AT86RF233ZU%
  • IntroductionDate Feb 01, 2012

Parametry

  • Antenna Mounting External
  • Application Transceiver For ZIGBEE, RF4CE, IEEE 802.15.4, 6LOWPAN and ISM
  • External Antenna Connector Type N/A
  • Flash Size (KB) N/A
  • ISM Band 2.4GHz
  • Indoor Range N/A
  • Interface SPI
  • Internal Antenna Type N/A
  • Maximum Current Consumption (RX) (mA) N/A
  • Maximum Current Consumption (TX) (mA) N/A
  • Maximum Data Rate (Kbps) 2000
  • Maximum Operating Frequency (MHz) 2527
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Power 4dBm(Typ)
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Frequency (MHz) 2322
  • Minimum Operating Supply Voltage (V) 1.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -50
  • Modulation Technique OQPSK
  • Module/IC Classification Module
  • Number of Channels N/A
  • Outdoor Range N/A
  • Process Technology RFCMOS
  • Processing Unit Type Microcontroller
  • Protocol Stack 6LoWPAN/802.15.4/ZigBee
  • RAM Size (KB) N/A
  • Solutions ISM/SRD
  • Special Features N/A
  • Supplier Temperature Grade Industrial
  • Tradename N/A
  • Typical Operating Supply Voltage (V) 3
  • Typical Sensitivity -101dBm

Więcej informacji

Do pobrania Download
Main description 6LoWPAN/802.15.4/ZigBee SOC 2527MHz 2000Kbps 32-Pin QFN EP Tray
