AT45DB161E-SHD2B-T
| Do pobrania | Download |
|---|---|

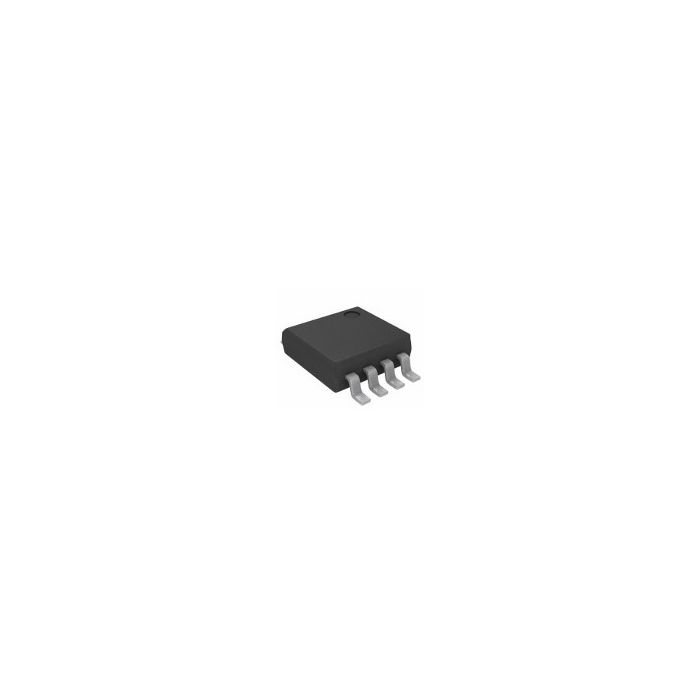

| Main description | NOR Flash Serial-SPI 3.3V 16M-bit 2M x 8 6ns 8-Pin SOIC EIAJ T/R |
NOR Flash Serial-SPI 3.3V 16M-bit 2M x 8 6ns 8-Pin SOIC EIAJ T/R
Informacje podstawowe
- ProducentAdesto Technologies Corporation, Inc
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Unknown
Informacje dodatkowe
- Crosses 29
- Inventory 4
- PCNs 7
- GIDEP-Alerts 2
- MaskPart AT45DB161ESHD2B%
- IntroductionDate Oct 01, 2012
Parametry
- Address Bus Width (bit) 21
- Architecture Sectored
- Bank Size N/R
- Block Organization Symmetrical
- Boot Block No
- Cell Type NOR
- Command Compatible Yes
- Density (bit) 16M
- Density in Bits (bit) 16777216
- ECC Support No
- Erase Suspend/Resume Modes Support Yes
- Interface Type Serial-SPI
- Location of Boot Block N/R
- Maximum Access Time (ns) 6
- Maximum Erase Time (s) 40/Chip
- Maximum Page Access Time (ns) N/A
- Maximum Programming Time (ms) 4/Page
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Banks N/A
- Number of Bits per Word (bit) 8
- Number of Words 2M
- OE Access Time (ns) N/A
- Page Read Current (mA) N/A
- Page Size 512byte
- Program Current (mA) 18
- Programmability Yes
- Programming Voltage (V) 2.5 to 3.6
- Sector Size 128Kbyte x 16
- Simultaneous Read/Write Support No
- Supplier Temperature Grade Industrial
- Support of Common Flash Interface No
- Support of Page Mode Yes
- Timing Type Synchronous
