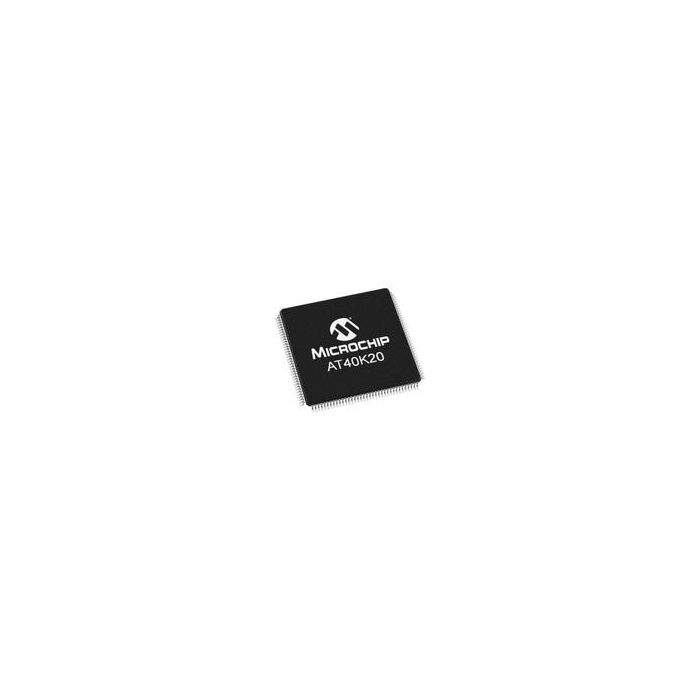

AT40K20-2BQJ
| Do pobrania | Download |
|---|---|
| Main description | FPGA AT40K Family 30K Gates 1024 Cells 0.6um Technology 5V 144-Pin LQFP Tray |
FPGA AT40K Family 30K Gates 1024 Cells 0.6um Technology 5V 144-Pin LQFP Tray
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 520
- Inventory 1
- PCNs 46
- MaskPart AT40K202BQJ%
Parametry
- Copy Protection No
- Dedicated DSP N/A
- Device Logic Cells 1024
- Device Logic Gates 30000
- Device Logic Units 1024
- Device Number of DLLs/PLLs N/A
- Device System Gates 30000
- Digital Control Impedance No
- Ethernet MACs N/A
- Family Name AT40K
- Giga Multiply Accumulates per Second N/A
- I/O Voltage (V) N/A
- In-System Programmability Yes
- Maximum Differential I/O Pairs N/A
- Maximum Distributed RAM Bits 8192
- Maximum I/O Performance N/A
- Maximum Internal Frequency (MHz) N/A
- Maximum Number of SERDES Channels N/A
- Maximum Number of User I/Os 114
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) N/A
- Mega Multiply Accumulates per second N/A
- Number of Global Clocks 8
- Number of I/O Banks N/A
- Number of Inter Dielectric Layers N/A
- Number of Multipliers N/A
- Number of Registers 1024
- PCI Blocks N/A
- Process Technology 0.6um
- Processor Blocks N/A
- Program Memory Type SRAM
- Programmability No
- RAM Bits (Kbit) N/A
- Reprogrammability Support Yes
- Shift Registers N/A
- Speed Grade 2
- Supplier Temperature Grade Industrial
- Temperature Flag Case
- Tolerant Configuration Interface Voltage (V) N/A
- Total Number of Block RAM N/A
- Tradename AT40K
- Transceiver Blocks N/A
- Transceiver Speed (Gbps) N/A
- Typical Supply Current (mA) N/A
