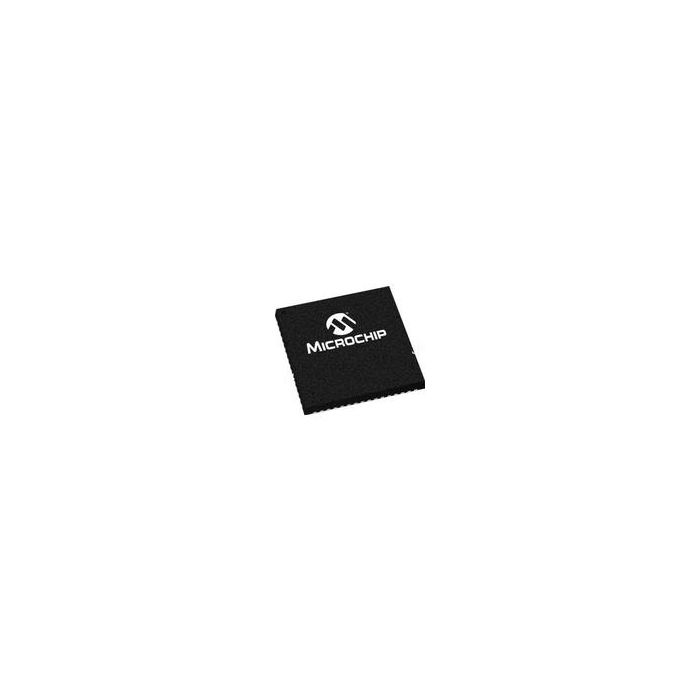

AT32UC3C2512C-Z2UT

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT32UC3C2512C-Z2UT_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT32UC3C2512C-Z2UT

MCU 32-bit AVR RISC 512KB Flash 3.3V/5V 64-Pin QFN EP Tray

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 3
  • PCNs 48
  • GIDEP-Alerts 1
  • MaskPart AT32UC3C2512CZ2U%
  • IntroductionDate Nov 05, 2010
  • AliasParts 32UC3C2512C-Z2UT

Parametry

  • ADC Channels 11
  • ADC Resolution (bit) 12
  • Analog Comparators 2
  • CAN 2
  • DAC Channels 2
  • DAC Resolution (bit) 12
  • Data Bus Width (bit) 32
  • Data Memory Size N/A
  • Device Core AVR
  • Display Driver N/A
  • Ethernet 1
  • Family Name AT32
  • I2C 0
  • I2S 1
  • Instruction Set Architecture RISC
  • Interface Type CAN/Ethernet/I2S/SPI/TWI/USART/USB
  • LCD Segments N/A
  • Maximum CPU Frequency (MHz) 66
  • Maximum Clock Rate (MHz) 66
  • Maximum Expanded Memory Size N/A
  • Maximum Operating Supply Voltage (V) 3.6|5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 3|4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -60
  • Number of ADCs Single
  • Number of DACs Single
  • Number of Programmable I/Os 45
  • Number of Timers 3
  • Operating Supply Voltage (V) 3.3|5
  • PWM 8
  • Program Memory Size 512KB
  • Program Memory Type Flash
  • Programmability Yes
  • RAM Size 64KB
  • SPI 1
  • Special Features CAN Controller
  • Temperature Flag Opr
  • Typical Operating Supply Voltage (V) 3.3|5
  • UART 0
  • USART 4
  • USB 1
  • Watchdog 1

Więcej informacji

Do pobrania Download
Main description MCU 32-bit AVR RISC 512KB Flash 3.3V/5V 64-Pin QFN EP Tray
