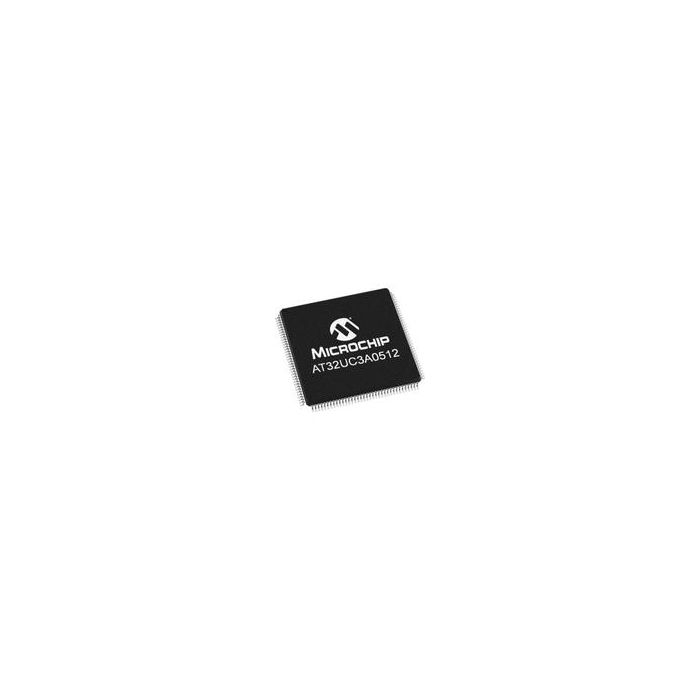

AT32UC3A0512-ALUT

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT32UC3A0512-ALUT_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT32UC3A0512-ALUT

MCU 32-bit AVR RISC 512KB Flash 1.8V/3.3V 144-Pin LQFP Tray

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1628
  • Inventory 13
  • PCNs 48
  • GIDEP-Alerts 1
  • MaskPart AT32UC3A0512ALU%
  • IntroductionDate Apr 03, 2007

Parametry

  • ADC Channels 8
  • ADC Resolution (bit) 10
  • Analog Comparators N/A
  • CAN 0
  • Core Architecture AVR
  • DAC Channels N/A
  • DAC Resolution (bit) N/A
  • Data Bus Width (bit) 32
  • Data Memory Size N/A
  • Device Core AVR
  • Display Driver N/A
  • Ethernet 1
  • Family Name AT32
  • I2C 1
  • I2S 1
  • Instruction Set Architecture RISC
  • Interface Type Ethernet/I2C/I2S/SPI/USART/USB
  • LCD Segments N/A
  • Maximum CPU Frequency (MHz) 66
  • Maximum Clock Rate (MHz) 66
  • Maximum Expanded Memory Size 64MB
  • Maximum Operating Supply Voltage (V) 1.95|3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.65|3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -60
  • Number of ADCs Single
  • Number of DACs N/A
  • Number of Programmable I/Os 69
  • Number of Timers 3
  • Operating Supply Voltage (V) 1.8|3.3
  • PWM 1
  • Program Memory Size 512KB
  • Program Memory Type Flash
  • Programmability Yes
  • RAM Size 64KB
  • SPI 1
  • Special Features N/A
  • Supplier Temperature Grade Industrial
  • Temperature Flag Opr
  • Typical Operating Supply Voltage (V) 1.8|3.3
  • UART 0
  • USART 4
  • USB 1
  • Watchdog 1

Więcej informacji

Do pobrania Download
Main description MCU 32-bit AVR RISC 512KB Flash 1.8V/3.3V 144-Pin LQFP Tray
