AT29C040A-90JI
| Do pobrania | Download |
|---|---|
| Main description | NOR Flash Parallel 5V 4M-bit 512K x 8 90ns 32-Pin PLCC |

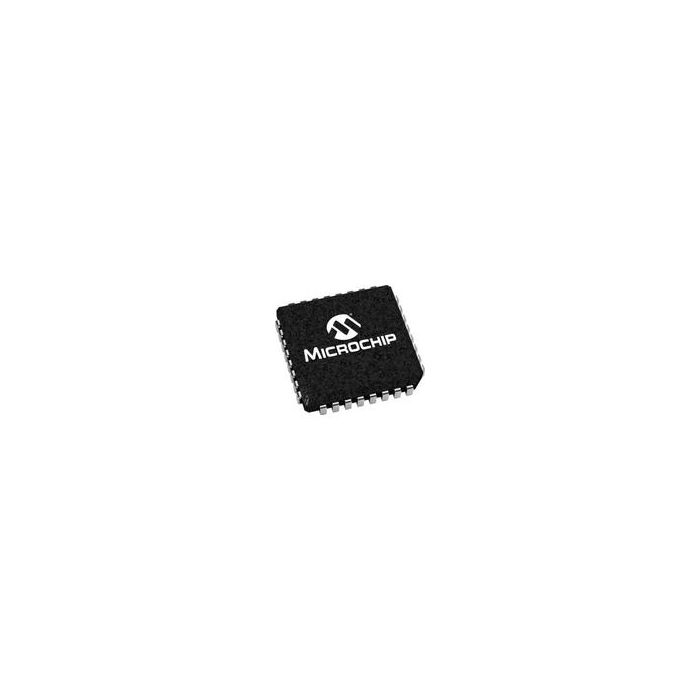

NOR Flash Parallel 5V 4M-bit 512K x 8 90ns 32-Pin PLCC
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSNo (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 178
- Inventory 1
- PCNs 51
- MaskPart AT29C040A90JI%
- IntroductionDate May 02, 1997
Parametry
- Address Bus Width (bit) 19
- Architecture Sectored
- Bank Size N/R
- Block Organization Symmetrical
- Boot Block Yes
- Cell Type NOR
- Command Compatible No
- Density (bit) 4M
- Density in Bits (bit) 4194304
- ECC Support No
- Erase Suspend/Resume Modes Support No
- Interface Type Parallel
- Location of Boot Block Bottom|Top
- Maximum Access Time (ns) 90
- Maximum Erase Time (s) N/A
- Maximum Page Access Time (ns) N/R
- Maximum Programming Time (ms) 10/Sector
- Number of Banks N/A
- Number of Bits per Word (bit) 8
- Number of Words 512K
- OE Access Time (ns) 40
- Page Read Current (mA) N/R
- Page Size N/A
- Program Current (mA) N/A
- Programmability Yes
- Programming Voltage (V) 4.5 to 5.5
- Sector Size 256byte x 2048
- Simultaneous Read/Write Support No
- Supplier Temperature Grade Industrial
- Support of Common Flash Interface No
- Support of Page Mode No
- Timing Type Asynchronous
