AT28LV010-20JU-319

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT28LV010-20JU-319_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT28LV010-20JU-319

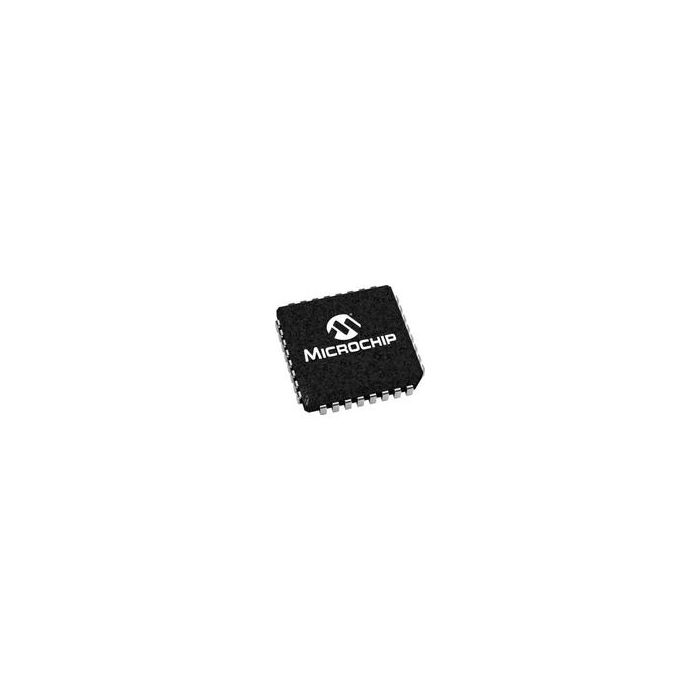

EEPROM Parallel 1M-bit 128K x 8 3.3V 32-Pin PLCC Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 3
  • PCNs 45
  • MaskPart AT28LV01020JU319%

Parametry

  • Data Retention (Year) 10
  • Density (bit) 1M
  • Density in Bits (bit) 1048576
  • Hardware Data Protection Yes
  • Interface Type Parallel
  • Maximum Access Time (ns) 200
  • Maximum Operating Current (mA) 15
  • Maximum Operating Frequency (MHz) N/A
  • Maximum Operating Supply Voltage (V) 3.465
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 3.135
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 128Kx8
  • Output Enable Access Time (ns) 80
  • Programmability Yes
  • Programming Voltage (V) 3.135 to 3.465
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description EEPROM Parallel 1M-bit 128K x 8 3.3V 32-Pin PLCC Tube
