AT28C010E-12TU

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT28C010E-12TU_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT28C010E-12TU

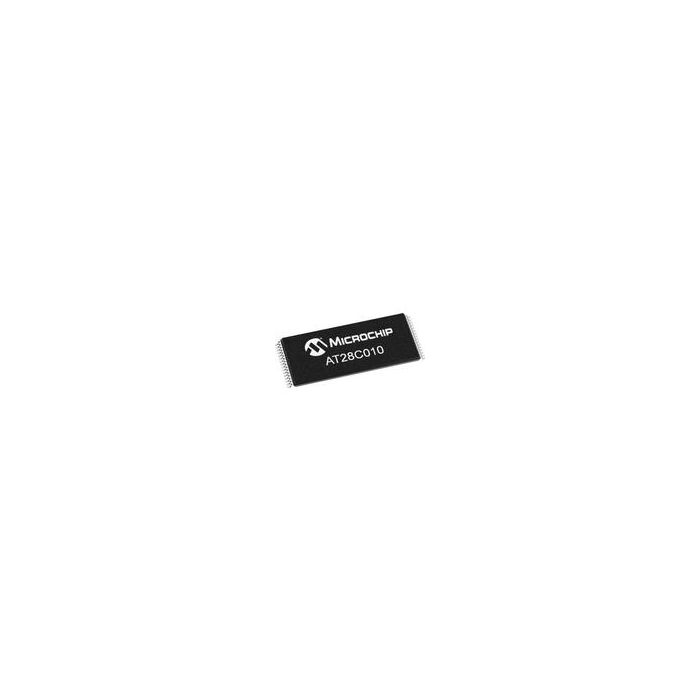

EEPROM Parallel 1M-bit 128K x 8 5V 32-Pin TSOP-I Tray

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 27
  • Inventory 7
  • PCNs 48
  • MaskPart AT28C010E12TU%
  • IntroductionDate May 15, 1996

Parametry

  • Data Retention (Year) 10
  • Density (bit) 1M
  • Density in Bits (bit) 1048576
  • Hardware Data Protection Yes
  • Interface Type Parallel
  • Maximum Access Time (ns) 120
  • Maximum Operating Current (mA) 40
  • Maximum Operating Frequency (MHz) N/R
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Organization 128Kx8
  • Output Enable Access Time (ns) 50
  • Programmability Yes
  • Programming Voltage (V) 4.5 to 5.5
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description EEPROM Parallel 1M-bit 128K x 8 5V 32-Pin TSOP-I Tray
