AT28BV256-20TU-T

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT28BV256-20TU-T_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT28BV256-20TU-T

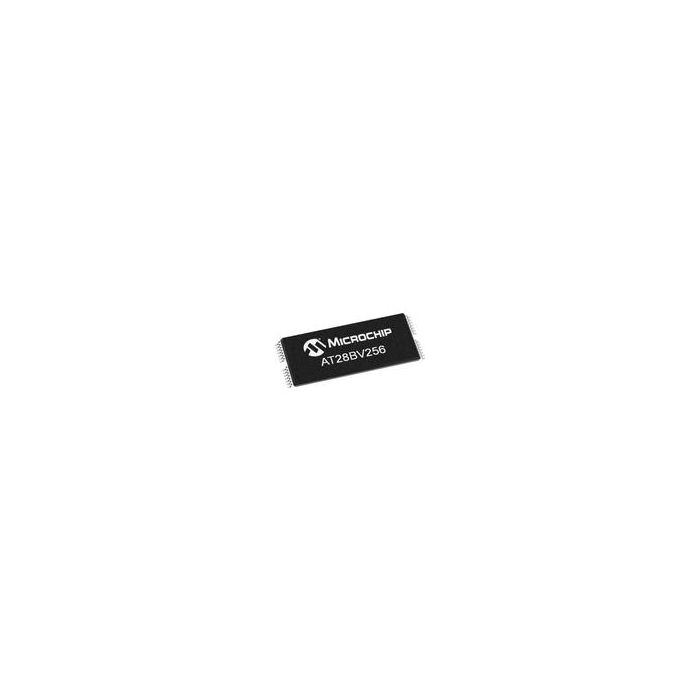

EEPROM Parallel 256K-bit 32K x 8 3.3V 28-Pin TSOP-I T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 114
  • Inventory 2
  • PCNs 47
  • MaskPart AT28BV25620TU%
  • IntroductionDate May 02, 1997

Parametry

  • Data Retention (Year) 10
  • Density (bit) 256K
  • Density in Bits (bit) 262144
  • Hardware Data Protection Yes
  • Interface Type Parallel
  • Maximum Access Time (ns) 200
  • Maximum Operating Current (mA) 15
  • Maximum Operating Frequency (MHz) N/R
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 32Kx8
  • Output Enable Access Time (ns) 80
  • Programmability Yes
  • Programming Voltage (V) 2.7 to 3.6
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description EEPROM Parallel 256K-bit 32K x 8 3.3V 28-Pin TSOP-I T/R
