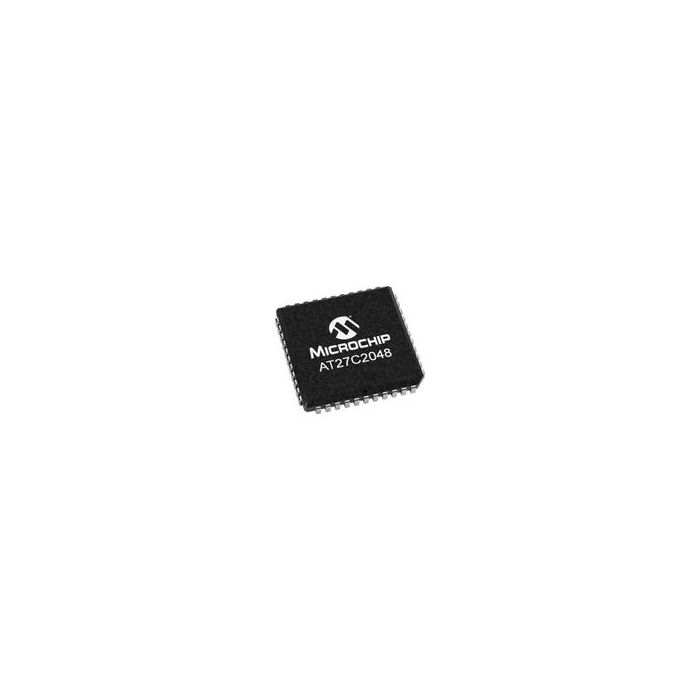

AT27C2048-90PU

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT27C2048-90PU_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT27C2048-90PU

EPROM OTP 2M-bit 128K x 16 90ns 40-Pin PDIP W

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 30
  • PCNs 53
  • GIDEP-Alerts 3
  • MaskPart AT27C204890PU%
  • IntroductionDate May 02, 1997

Parametry

  • Density (bit) 2M
  • Density in Bits (bit) 2097152
  • In-System Programmability External
  • Interface Type Parallel
  • Maximum Access Time (ns) 90
  • Maximum Operating Current (mA) 35
  • Maximum Operating Frequency (MHz) N/R
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Operating Supply Voltage (V) 5
  • Organization 128Kx16
  • Output Enable Access Time (ns) 35
  • Programmability Yes
  • Programming Voltage (V) 13
  • Reprogramming Technique OTP
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description EPROM OTP 2M-bit 128K x 16 90ns 40-Pin PDIP W
