AT27C020-55PU

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT27C020-55PU_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT27C020-55PU

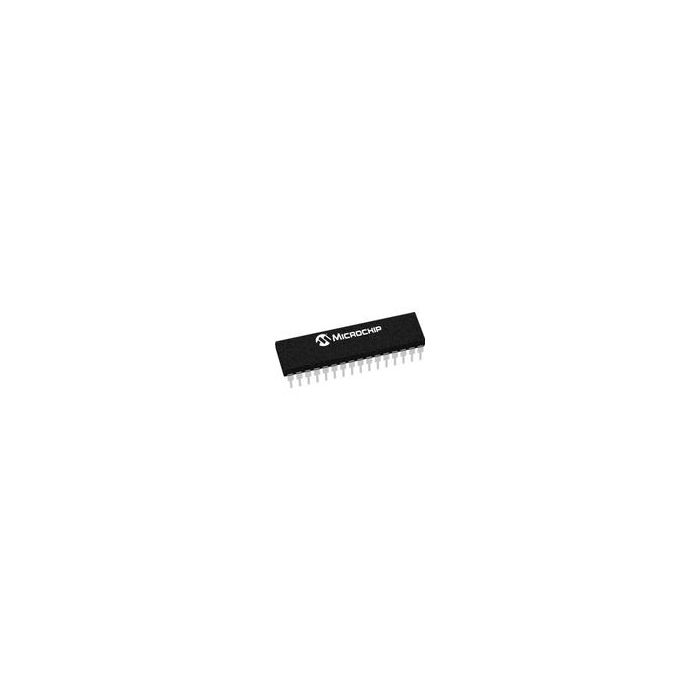

EPROM OTP 2M-bit 256K x 8 55ns 32-Pin PDIP W Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 129
  • Inventory 10
  • PCNs 49
  • MaskPart AT27C02055PU%
  • IntroductionDate May 02, 1997

Parametry

  • Density (bit) 2M
  • Density in Bits (bit) 2097152
  • In-System Programmability External
  • Interface Type Parallel
  • Maximum Access Time (ns) 55
  • Maximum Operating Current (mA) 25
  • Maximum Operating Frequency (MHz) N/R
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Operating Supply Voltage (V) 5
  • Organization 256Kx8
  • Output Enable Access Time (ns) 20
  • Programmability Yes
  • Programming Voltage (V) 12.75 to 13.25
  • Reprogramming Technique OTP
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description EPROM OTP 2M-bit 256K x 8 55ns 32-Pin PDIP W Tube
