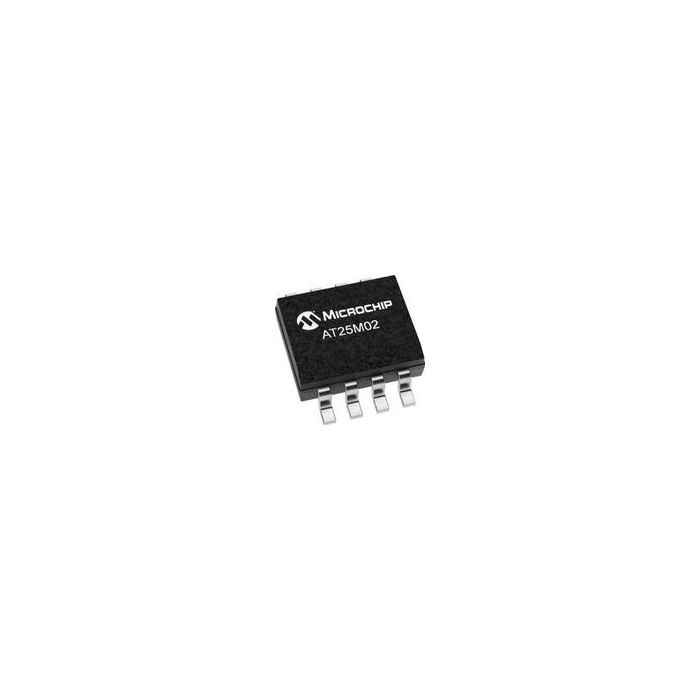

AT25M02-SSHD-T

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT25M02-SSHD-T_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT25M02-SSHD-T

EEPROM Serial-SPI 2M-bit 256K x 8 3.3V/5V 8-Pin SOIC T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 14
  • Inventory 5
  • PCNs 55
  • GIDEP-Alerts 4
  • MaskPart AT25M02SSHD%

Parametry

  • Data Retention (Year) 100(Min)
  • Density (bit) 2M
  • Density in Bits (bit) 2097152
  • Hardware Data Protection Yes
  • Interface Type Serial-SPI
  • Maximum Access Time (ns) 80
  • Maximum Operating Current (mA) 3
  • Maximum Operating Frequency (MHz) 5
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 256Kx8
  • Output Enable Access Time (ns) N/A
  • Process Technology N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-SPI 2M-bit 256K x 8 3.3V/5V 8-Pin SOIC T/R
