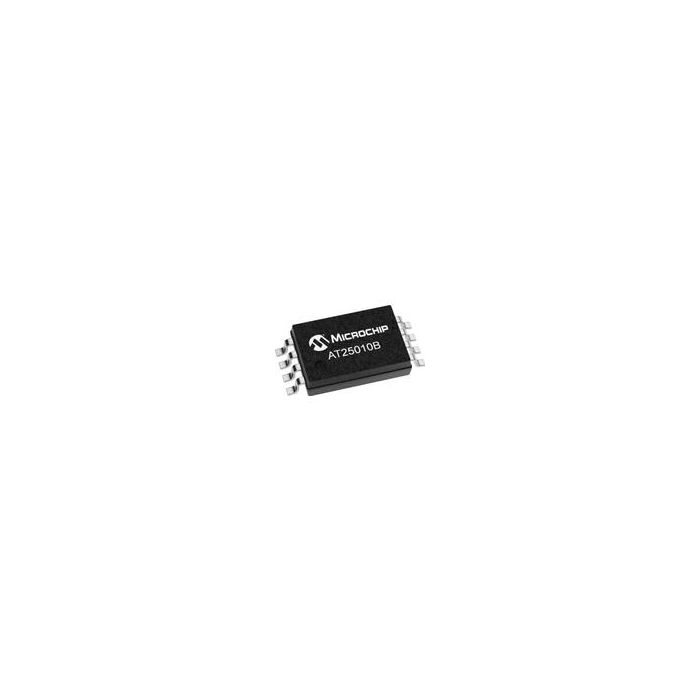

AT25010B-XHL-T

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT25010B-XHL-T_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT25010B-XHL-T

EEPROM Serial-3Wire 1K-bit 128 x 8 2.5V/3.3V/5V Automotive 8-Pin TSSOP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 536
  • Inventory 4
  • PCNs 50
  • GIDEP-Alerts 1
  • MaskPart AT25010BXHL%
  • IntroductionDate May 02, 1997

Parametry

  • Data Retention (Year) 100
  • Density (bit) 1K
  • Density in Bits (bit) 1024
  • Hardware Data Protection Yes
  • Interface Type Serial-3Wire
  • Maximum Access Time (ns) 80
  • Maximum Operating Current (mA) 10
  • Maximum Operating Frequency (MHz) 20
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 128x8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-3Wire 1K-bit 128 x 8 2.5V/3.3V/5V Automotive 8-Pin TSSOP T/R
