AT24CSW010-UUM0B-T

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT24CSW010-UUM0B-T_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT24CSW010-UUM0B-T

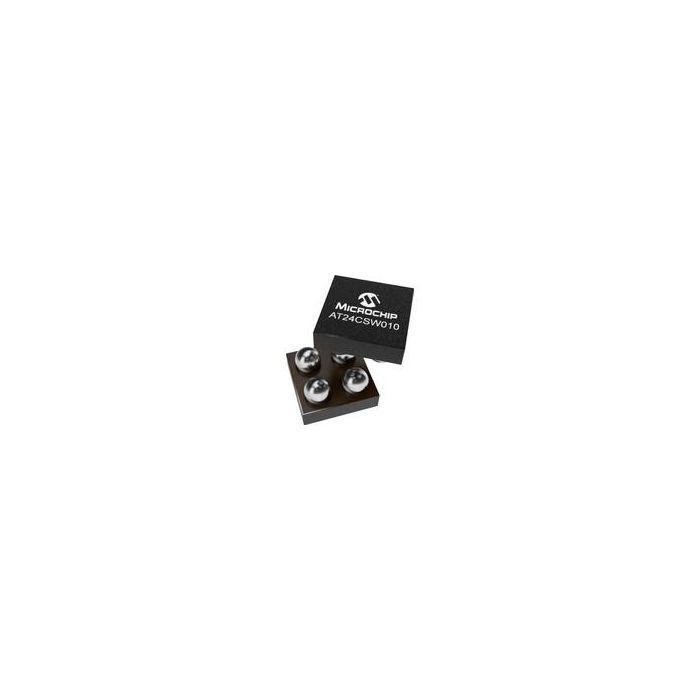

EEPROM Serial-I2C 1K-bit 128 x 8 1.8V/2.5V/3.3V 4-Pin WLCSP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 5
  • PCNs 47
  • GIDEP-Alerts 1
  • MaskPart AT24CSW010UUM0B%

Parametry

  • Data Retention (Year) 100
  • Density (bit) 1K
  • Density in Bits (bit) 1024
  • Hardware Data Protection No
  • Interface Type Serial-I2C
  • Maximum Access Time (ns) 4500
  • Maximum Operating Current (mA) 1
  • Maximum Operating Frequency (MHz) 1
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Minimum Operating Supply Voltage (V) 1.7
  • Minimum Operating Temperature (°C) -40
  • Organization 128x8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-I2C 1K-bit 128 x 8 1.8V/2.5V/3.3V 4-Pin WLCSP T/R
