AT24C32D-XPD-T

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT24C32D-XPD-T_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT24C32D-XPD-T

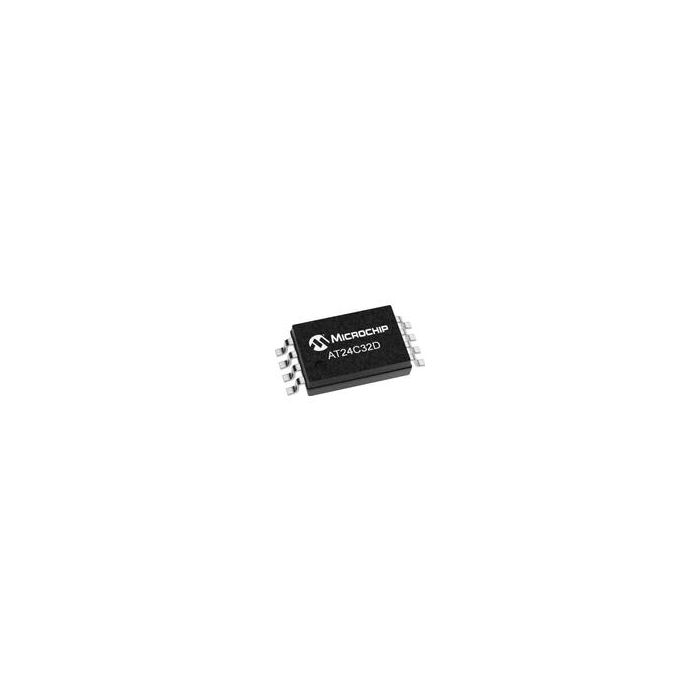

EEPROM Serial-2Wire 32K-bit 4K x 8 3.3V/5V Automotive 8-Pin TSSOP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 556
  • PCNs 52
  • GIDEP-Alerts 1
  • MaskPart AT24C32DXPD%

Parametry

  • Data Retention (Year) 100
  • Density (bit) 32K
  • Density in Bits (bit) 32768
  • Hardware Data Protection Yes
  • Interface Type Serial-2Wire
  • Maximum Access Time (ns) 900
  • Maximum Operating Current (mA) 3
  • Maximum Operating Frequency (MHz) 0.4
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 4Kx8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Automotive
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-2Wire 32K-bit 4K x 8 3.3V/5V Automotive 8-Pin TSSOP T/R
