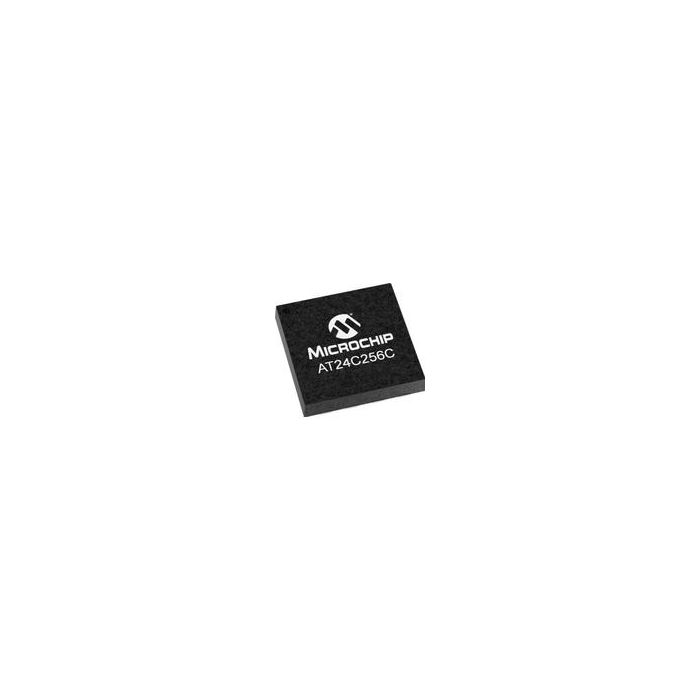

AT24C256C-MAHL-T

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
AT24C256C-MAHL-T_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / AT24C256C-MAHL-T

EEPROM Serial-2Wire 256K-bit 32K x 8 1.8V/2.5V/3.3V/5V Automotive 8-Pin UDFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 294
  • Inventory 8
  • PCNs 51
  • GIDEP-Alerts 3
  • MaskPart AT24C256CMAHL%
  • IntroductionDate Nov 05, 2008

Parametry

  • Data Retention (Year) 100(Min)
  • Density (bit) 256K
  • Density in Bits (bit) 262144
  • Hardware Data Protection Yes
  • Interface Type Serial-2Wire
  • Maximum Access Time (ns) 900
  • Maximum Operating Current (mA) 3
  • Maximum Operating Frequency (MHz) 1
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 32Kx8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-2Wire 256K-bit 32K x 8 1.8V/2.5V/3.3V/5V Automotive 8-Pin UDFN EP T/R
