AS4C4M16D1-5TCN

ProducentAlliance MemoryEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AS4C4M16D1-5TCN_ALLIANCE_MEMORY
0,00 zł

Zapytaj o ten produkt

Opis / AS4C4M16D1-5TCN

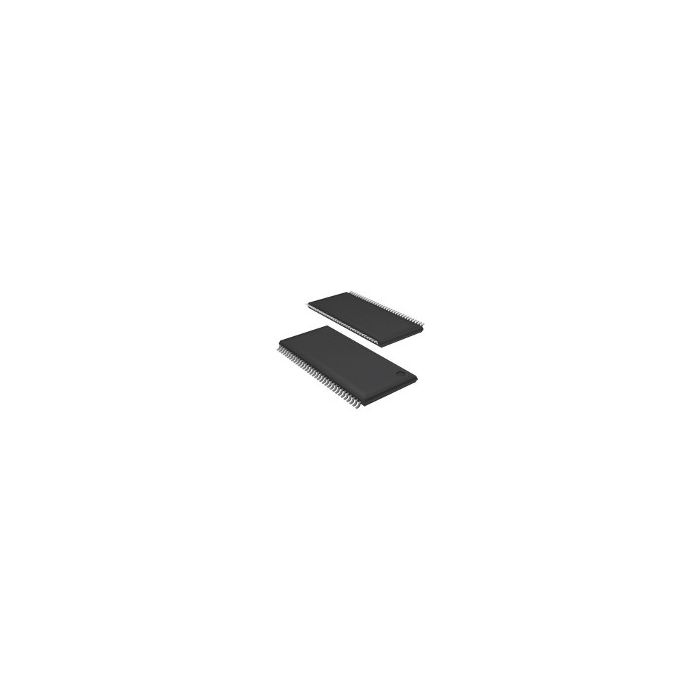

DRAM Chip DDR SDRAM 64Mbit 4Mx16 2.5V 66-Pin TSOP-II

Informacje podstawowe

  • ProducentAlliance Memory
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 14
  • Inventory 2
  • PCNs 2
  • MaskPart AS4C4M16D15TCN%
  • IntroductionDate Jan 09, 2013

Parametry

  • Address Bus Width (bit) 14
  • Data Bus Width (bit) 16
  • Density (bit) 64M
  • Density in Bits (bit) 67108864
  • Interface Type SSTL_2
  • Maximum Access Time (ns) 0.7
  • Maximum Clock Rate (MHz) 400
  • Maximum Operating Current (mA) 240
  • Maximum Operating Supply Voltage (V) 2.7
  • Maximum Operating Temperature (°C) 70
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.3
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -55
  • Number of Bits per Word (bit) 16
  • Number of I/O Lines (bit) 16
  • Number of Internal Banks 4
  • Number of Words per Bank 1M
  • Operating Supply Voltage (V) 2.5
  • Organization 4Mx16
  • Supplier Temperature Grade Commercial
  • Type DDR SDRAM
  • Typical Operating Supply Voltage (V) 2.5

Więcej informacji

Do pobrania Download
Main description DRAM Chip DDR SDRAM 64Mbit 4Mx16 2.5V 66-Pin TSOP-II
