AP494IS16

ProducentDiodes IncorporatedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP494IS16_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP494IS16

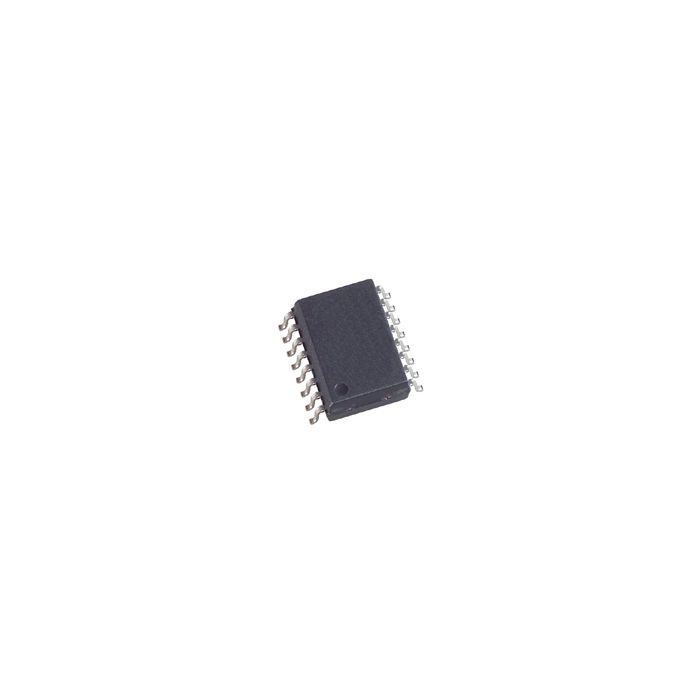

Voltage Mode PWM Controller 30V 200mA 200kHz 16-Pin SOP

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 27
  • PCNs 15
  • MaskPart AP494IS16%
  • IntroductionDate Jul 16, 2003

Parametry

  • Adjustable Output No
  • Control Method Voltage Mode PWM Controller
  • Fall Time (ns) 40
  • Maximum Duty Cycle (%) 50
  • Maximum Operating Supply Voltage (V) 40
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1000
  • Maximum Supply Current (mA) 7(Typ)
  • Minimum Operating Supply Voltage (V) 7
  • Minimum Operating Temperature (°C) -40
  • Number of PWM Outputs 2
  • On/Off Pin No
  • Operating Supply Voltage (V) 15
  • Output Current (mA) 200(Max)
  • Output Voltage (V) 30
  • Rise Time (ns) 100
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 200
  • Synchronous Pin No
  • Topology Push-Pull
  • Type Voltage Mode PWM Controller
  • Typical Operating Supply Voltage (V) 15

Więcej informacji

Do pobrania Download
Main description Voltage Mode PWM Controller 30V 200mA 200kHz 16-Pin SOP
