AP4303AM-CTR

ProducentDiodes IncorporatedEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP4303AM-CTR_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP4303AM-CTR

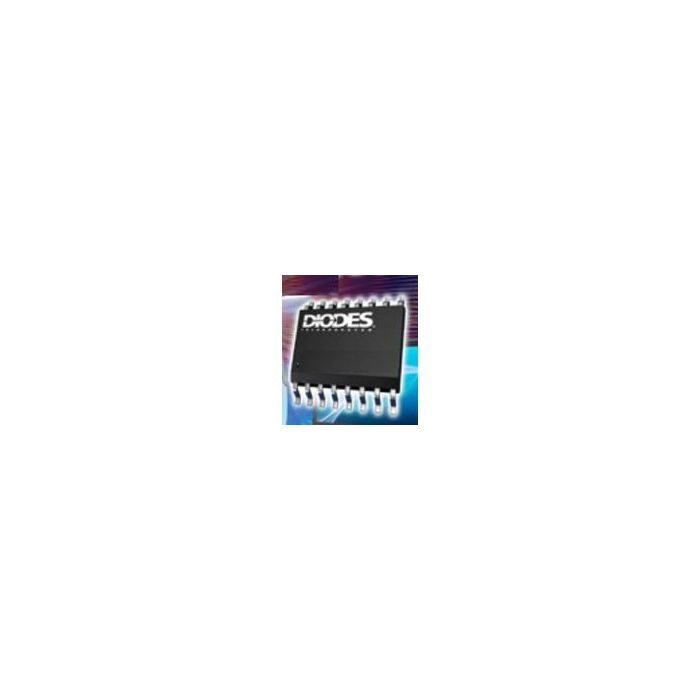

Quad Op-Amp and Voltage Reference 16-Pin SOIC T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 3
  • PCNs 15
  • MaskPart AP4303AMC%
  • IntroductionDate Apr 27, 2005

Parametry

  • Category Quad Op-Amp and Voltage Reference
  • Input Voltage (V) -0.3 to 20.3
  • Maximum Operating Supply Voltage (V) 18
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1000
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 2.4
  • Minimum Operating Supply Voltage (V) 3
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Output Current (A) 0.04
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) N/A
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Quad Op-Amp and Voltage Reference 16-Pin SOIC T/R
