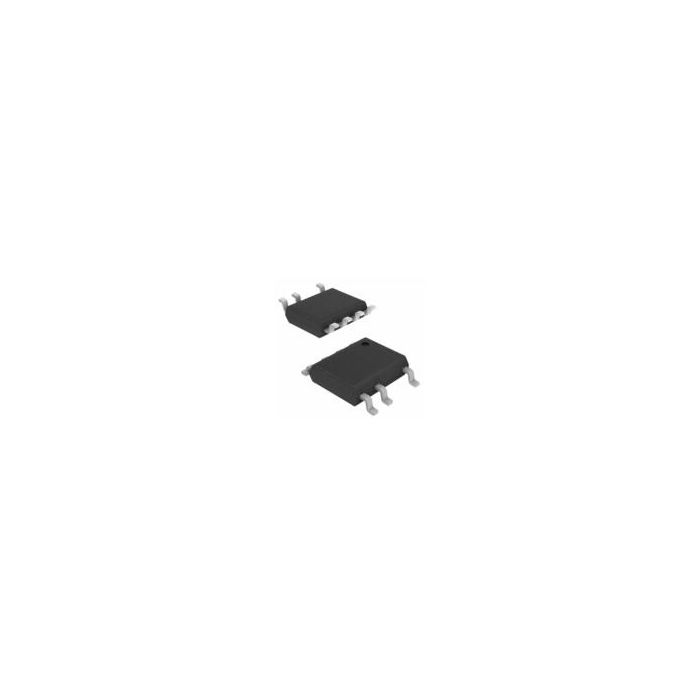

AP3983CMTR-G1

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP3983CMTR-G1_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP3983CMTR-G1

AC to DC Switching Converter Off-Line Switcher/SMPS Controller 18V 80kHz T/R 7-Pin SO

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 94
  • PCNs 14
  • MaskPart AP3983CM%G1
  • IntroductionDate Jul 19, 2016

Parametry

  • Maximum Operating Current (mA) 0.65
  • Maximum Operating Temperature (°C) 105
  • Maximum Output Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Voltage (V) 25
  • Maximum Under Voltage Lock Out (V) 18
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Minimum Supply Voltage (V) N/A
  • Minimum Under Voltage Lock Out (V) 13
  • Soft Start Option No
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 80
  • Topology Off-Line Switcher|SMPS Controller
  • Typical Inrush Current (uA) N/A
  • Typical Under Voltage Lock Out (V) 15.5

Więcej informacji

Do pobrania Download
Main description AC to DC Switching Converter Off-Line Switcher/SMPS Controller 18V 80kHz T/R 7-Pin SO
