AP3433FNTR-G1

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP3433FNTR-G1_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP3433FNTR-G1

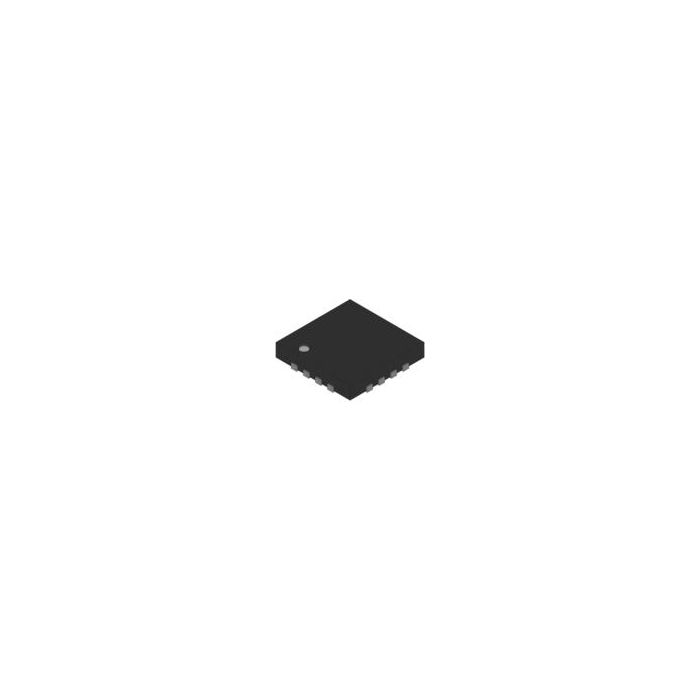

Conv DC-DC 2.95V to 5.5V Synchronous Step Down Single-Out 0.827V to 4.95V 3A 16-Pin QFN EP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 218
  • Inventory 1
  • PCNs 15
  • MaskPart AP3433FN%G1

Parametry

  • Efficiency (%) 94
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 80
  • Maximum Output Current (A) 3
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 2.95
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 0.827 to 4.95
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 300 to 2000
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 360

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.95V to 5.5V Synchronous Step Down Single-Out 0.827V to 4.95V 3A 16-Pin QFN EP T/R
