AP3417BK-ADJTRG1

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP3417BK-ADJTRG1_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP3417BK-ADJTRG1

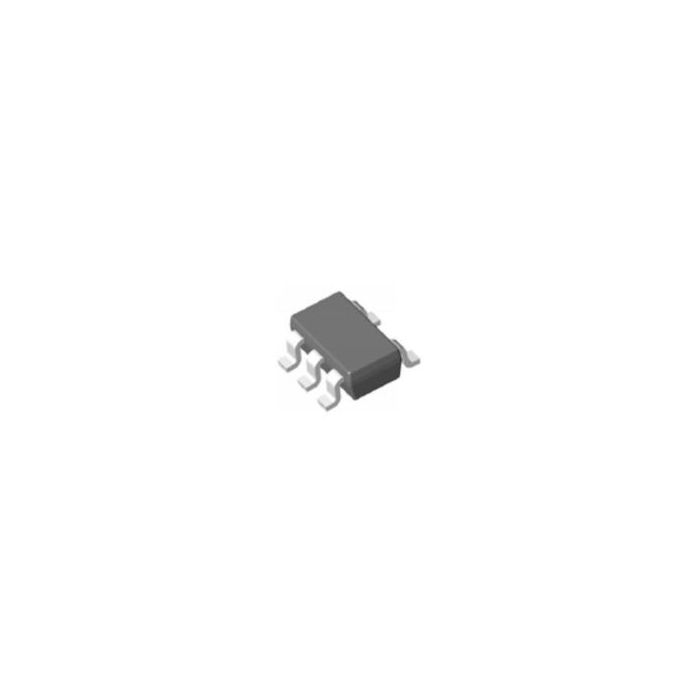

Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.5V 1.2A 5-Pin SOT-23 T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 290
  • PCNs 16
  • MaskPart AP3417BKADJ%G1
  • IntroductionDate Jan 15, 2013

Parametry

  • Efficiency (%) 95
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 1.2
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 2.5
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 0.6 to 5.5
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 1680
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 62

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.5V 1.2A 5-Pin SOT-23 T/R
