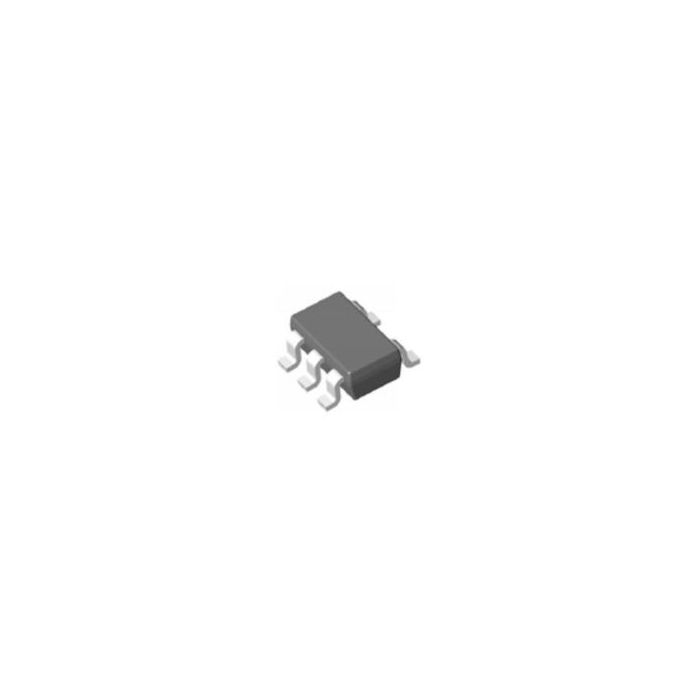

AP3015KTR-G1

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP3015KTR-G1_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP3015KTR-G1

Conv DC-DC 1.2V to 12V Step Up Single-Out 34V 5-Pin SOT-23 T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 109
  • Inventory 4
  • PCNs 15
  • MaskPart AP3015K%G1
  • IntroductionDate Oct 14, 2002

Parametry

  • Efficiency (%) N/A
  • Isolation N/A
  • Line Regulation 0.1%/V
  • Load Regulation N/A
  • Maximum Input Voltage (V) 12
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) N/A
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 1.2
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 34(Max)
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) N/A
  • Switching Regulator No
  • Technology N/A
  • Type Step Up
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 17
  • Typical Switch Current (A) 0.35

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 1.2V to 12V Step Up Single-Out 34V 5-Pin SOT-23 T/R
