AP3012KTR-G1

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP3012KTR-G1_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP3012KTR-G1

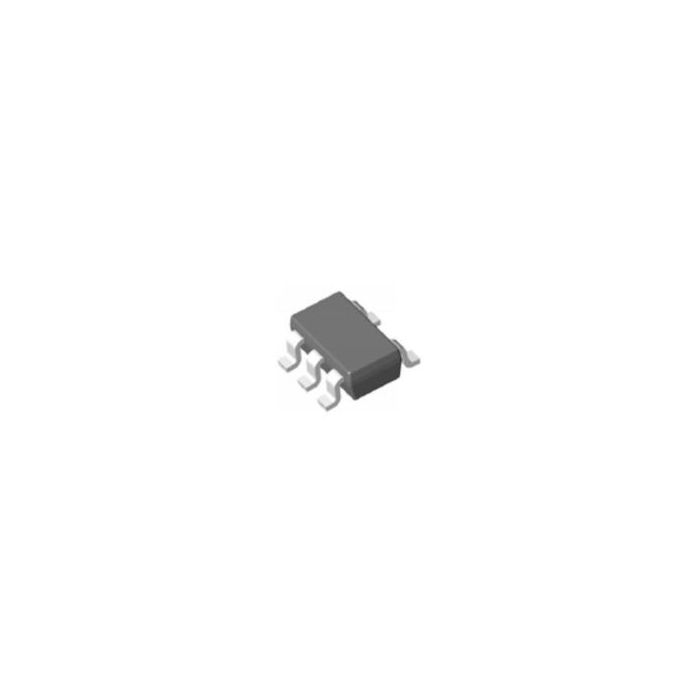

Conv DC-DC 2.6V to 16V Step Up Single-Out 29V 5-Pin SOT-23 T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 4
  • PCNs 15
  • MaskPart AP3012K%G1
  • IntroductionDate Oct 14, 2002

Parametry

  • Efficiency (%) 81
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 16
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) N/A
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.6
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.6 to 16
  • Output Type Adjustable
  • Output Voltage (V) 29(Max)
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 1900
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Up
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) 0.1
  • Typical Switch Current (A) 0.5

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.6V to 16V Step Up Single-Out 29V 5-Pin SOT-23 T/R
