AP2311FGEG-7

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AP2311FGEG-7_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / AP2311FGEG-7

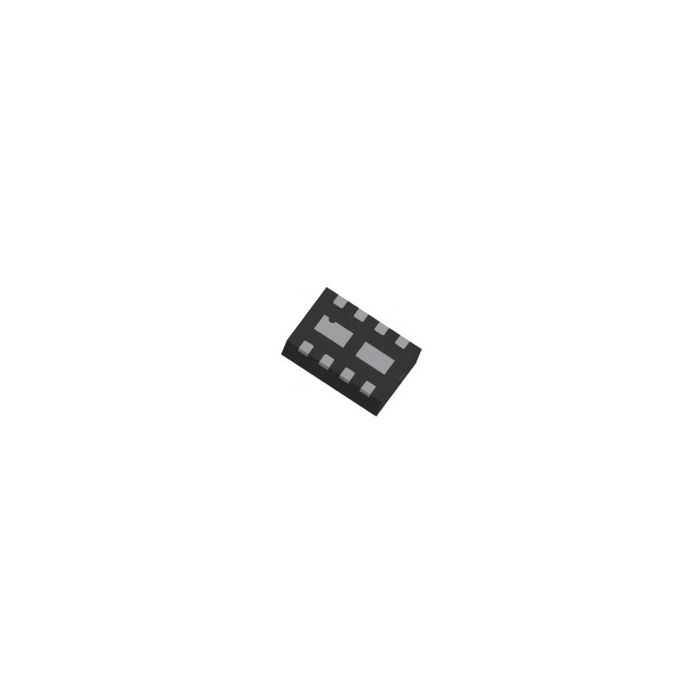

Hi Side Single 5.5V 2.5A 8-Pin UDFN EP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 68
  • Inventory 2
  • PCNs 17
  • GIDEP-Alerts 2
  • MaskPart AP2311FGEG%
  • IntroductionDate Jun 23, 2010

Parametry

  • Current Limit (A) 2.5
  • Enable Logic Active High
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Switches 1
  • Supplier Temperature Grade N/A
  • Switch On Resistance (mOhm) 90
  • Type High Side Switch
  • Typical Fall Time (us) 50
  • Typical Rise Time (us) 600
  • Typical Turn-Off Delay Time (us) 100
  • Typical Turn-On Delay Time (us) 100
  • Typical UVLO Threshold (V) 2

Więcej informacji

Do pobrania Download
Main description Hi Side Single 5.5V 2.5A 8-Pin UDFN EP T/R
